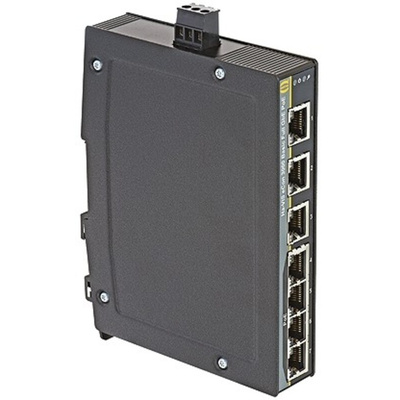

24034070020, HARTING DIN Rail Mount Ethernet Switch, 7 RJ45 Ports, 10/100/1000Mbit/s Transmission, 54V dc, Коммутатор

Ha-VIS eCon 3000

The Ha-VIS eCon 3000 Full Gigabit family of unmanaged Ethernet Switches offer a plug & play solution for DIN rail mounted connectivity. One main benefit of the eCon 3000 series is the slender construction and frontal port mounting of the switches, allowing for installation into space-restricted or hard-to-reach applications

Features of the Ha-VIS eCon 3000 Full Ethernet Basic
• Switches work as power sourcing equipment (PSE) and can supply up to 4 terminal devices via PoE+ (34.2 Watts per port)
• RJ45 transfer length of 100m via twisted pair Cat. 5 with a 10/100 Mbit/s transfer rate
• SC Duplex ports provide a transfer speed of 100 Mbits/s with a range of 2KM (Multimode) and 15KM (Single Mode)
• Energy-efficient Ethernet greatly reduces consumption
• Non-Blocking full Ethernet Switching architecture, in accordance with IEEE 802.3
• Auto-Negotiation, auto-polarity and auto-MDI(X) provide the user with a plug & play solution
• Supports extra-long Ethernet frames (Jumbo frames)
• Fibre-optic (SC Duplex) configuration options available
• Can support both 24/48V DC power supplies
• Commercial temperature range of 0°C to +55°C, industrial temperature range of -40°C to +70°C
• Reverse polarity & surge protection
• Anodised Aluminium housing with powder-coated steel sheet
• Optimised DIN rail bracket for a secure installation

Applications:

Industrial network infrastructure
Machinery & Robotics
Automation
Transportation
Wind & Solar energy
Shipbuilding
