1003-218, Megger Terminal Adaptor Kit for TDR2000/3 Handheld TDR

Terminal Adaptor Kit

Terminal adaptor kit for TDR2000/3 Cable Fault Locator.

Megger TDR Cable Fault Locator Accessory, Terminal Adaptor Kit Type, 6 Adaptors - 1003-218

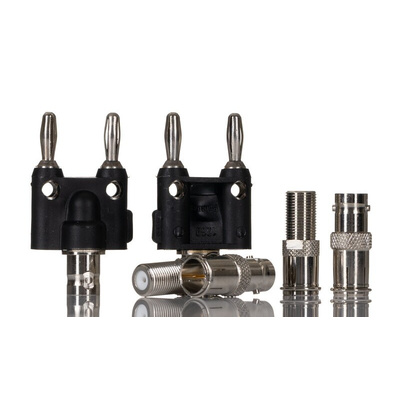

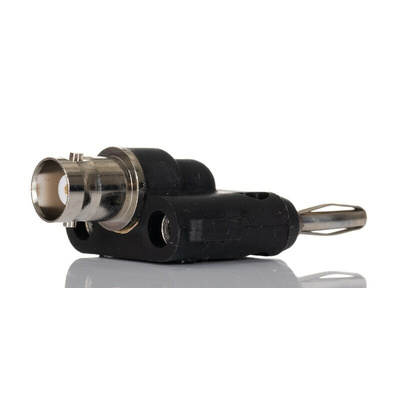

Match the connection point of your diagnostic tool to your electronic device with this TDR cable fault locator accessory from Megger. It's a terminal adaptor kit that's made up of multiple pieces for use with a TDR2000/3 handheld reflectometer (181-5018). The set comes with BNC, F-type quick-release and BNC-to-F-type adaptors, making it a handy solution for troubleshooting your equipment. Using the right adaptor for your terminal ensures a stable connection for clean and clear signal delivery.

Features & Benefits

• Contains six adaptors for versatility

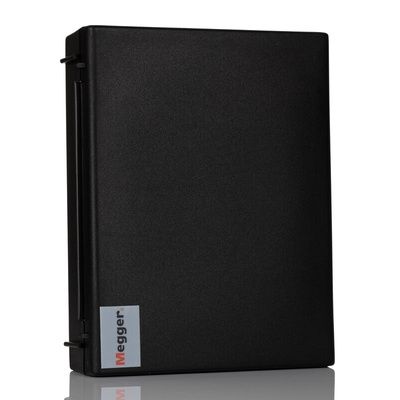

• Supplied in a durable storage box for safe and convenient transportation

Applications

• Aerospace engineering
• Data centres
• Assembly plants
• Oil and gas industry

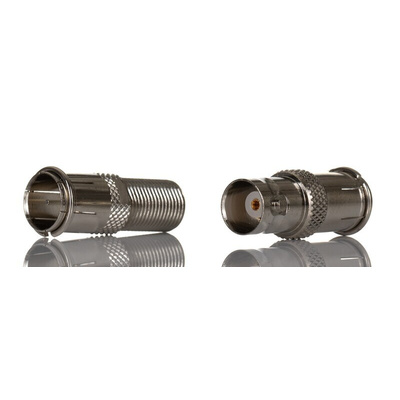

How do I fix the F-type quick-release adaptor to my TDR?

As it's unthreaded, you can fix the F-type quick-release adaptor by simply pushing it into your TDR's terminal until it clicks into place.

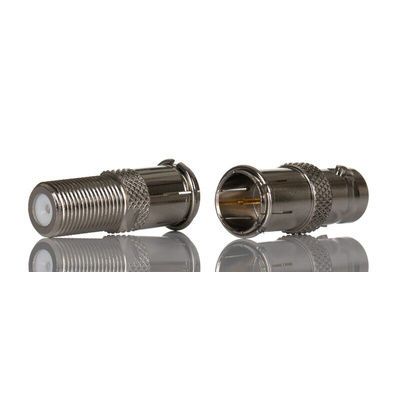

What's meant by a BNC-to-F-type adaptor?

A BNC-to-F-type adaptor features a bayonet-style mechanism on one end and a traditional threaded F-connector on the other, enabling the linking of different terminal types.
