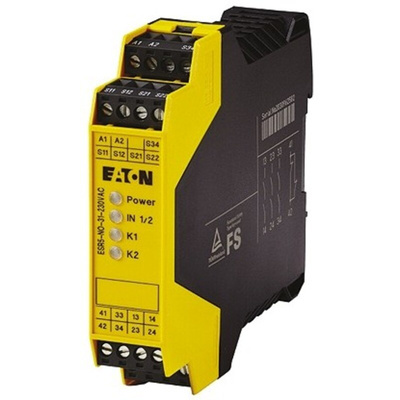

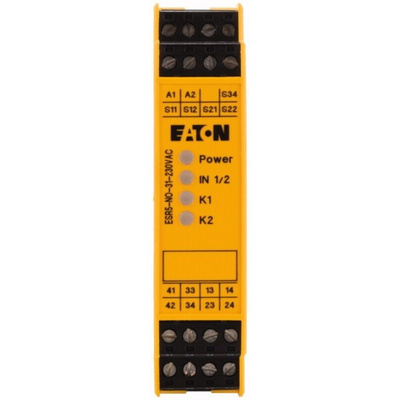

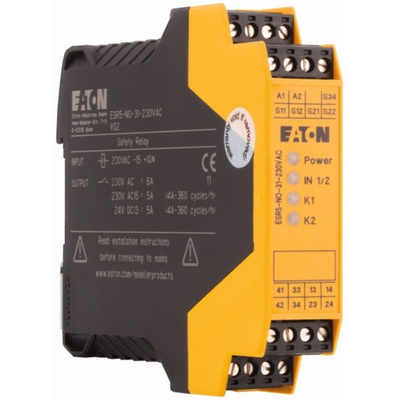

119380 ESR5-NO-31-230VAC, Eaton Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 230V, 3 Safety Contacts, Реле безопасности

Eaton ESR5 Safety Relays

The ESR5 safety relay from Eaton is designed to monitor the signals from safety systems at all times and switch off quickly and reliably in an emergency. These relays are suitable for automation and control applications that meet the highest safety requirements in accordance with EN 954-1, EN ISO 13849-1 up to PL e and accordance with IEC 62061 up to SILCL 3.

Standards

UL, cULus, TÜV.

Eaton Dual-Channel Safety Relay, 230V AC, 3 Contacts - ESR5 Series - 119380 ESR5-NO-31-230VAC

Choose this safety relay from Eaton for emergency stop applications. It's designed to continuously monitor signals from other safety devices and instantly shut a system down in the event of a safety hazard. The smart internal logic of this relay allows for the effective monitoring of your entire safety circuit, as well as all connected peripherals, such as light curtains and safety doors. An integrated diagnostic function means the device is able to detect faults before they happen, so you can rely on it to reduce maintenance needs and downtime. This relay is suitable for control and automation applications.

• Versatile option offering automatic or manual operation
• Compact dimensions of 22.5 (H) x 99 (W) x 114.5mm (D) for maximum packing efficiency on a control panel
• Suitable for use in both dry and damp industrial working conditions

What material is this relay made from?

This robust relay has a strong polyamide housing that offers good resistance to abrasion and everyday wear and tear. Its contacts are gold-plated for high levels of electrical conductivity and improved performance.

Part of the Eaton E-Stop family

Note

Eaton formerly known as Moeller

Machine Guarding and Safety Range Overview

Datasheet - Eaton ESR5-NO-31-230VAC

Instruction Sheet - Safety Relays

Manual - Safety Relay
