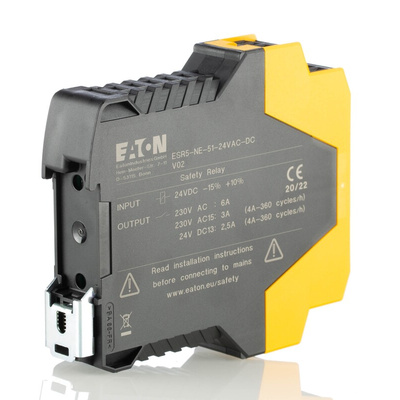

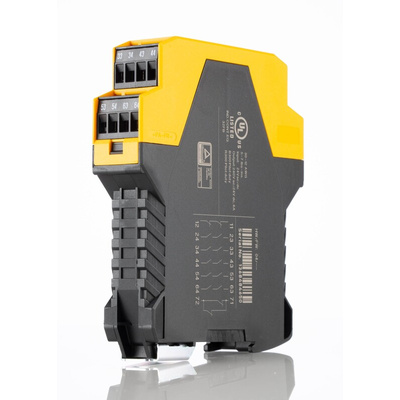

118707 & ESR5-NE-51-24VAC-DC, Eaton ESR5 Output Module, 24 V ac/dc, Модуль

Eaton Safety Relay

The Eaton ESR5 series safety relay has 5NO safety output, 1NC signal output and 1 feedback output. The internal logic of the safety relays monitors the safety circuits (emergency stop, guard door, and more) and activates the enable paths in a fault-free condition. Upon actuation of the safety device or in the event of a fault, the enable paths are switched off. Any faults that occur in the control circuit such as ground fault, cross-connection fault or wire breakage are also detected.

Features and Benefits

Use for the highest safety requirements
Plug-in screw terminals for fast and fault-free replacement
Control voltage is 24VAC/DC for a flexible range of application
Non-delayed contact expansions accommodate a wide variety of applications
DIN Rail mounting

Applications

Emergency stops
Rope pulls
2-hand control stations
Light curtain (OSSD)
Gate enable device
Safety switches

Certifications

UL listed
CSA certified
CE certified
TUV certified
IP20 rated (Enclosures, terminals)

Datasheet

Machine Guarding and Safety Range Overview
