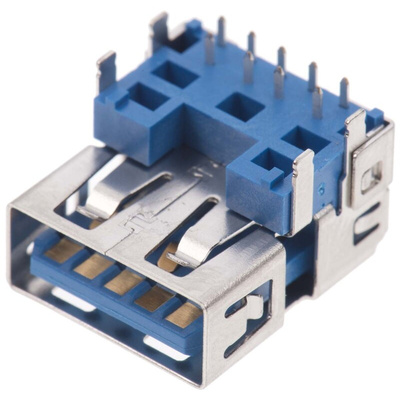

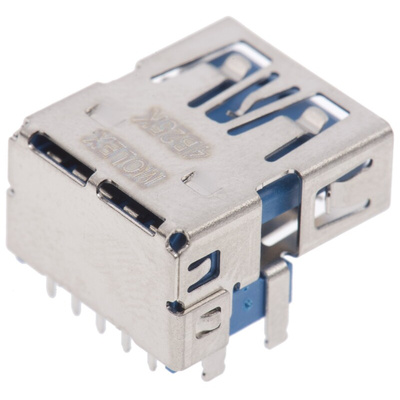

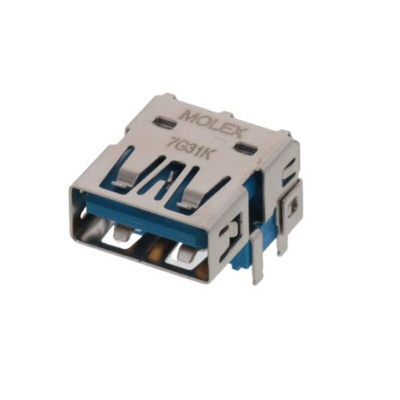

48391-0003, Molex Right Angle, Through Hole, Socket Type A 3.0 USB Connector, Разъем

Molex Type A USB 3.0 Connectors

Type A USB 3.0 Connectors with a robust and reliable design that meets the High-Durability-Class requirements of USB 3.0 specifications and able to withstand 5000 mating cycles. These USB 3.0 connectors provide a high-speed data rate 10 times faster than USB 2.0 and ensures that devices are powered sufficiently when required. The housings of these USB 3.0 connectors are made from high temperature halogen free blue nylon that can withstand IR (infrared) reflow temperatures of up to 225°C. Keying and polarization features enable accurate mating with the plug connector. PCB location and retention features provide accurate positioning and a secure connection on the PCB. These USB 3.0 connectors are available with a range of mounting configurations for design flexibility and stacked, dual port versions are also available. The Different contact heights on the connectors allow for vertical space savings when used in low profile applications.
Stock number 812-9617 - Top Mount, 6.09 mm contact height
Stock number 812-9623 - Reverse, mid-mount, 0.36 mm contact height
Stock number 812-9626 - Reverse mount, 4.06 mm contact height
Stock number 812-9629 - Top Mount, 4.00 mm contact height
Stock number 812-9632 - Reverse, mid-mount, 1.00 mm contact height
Stock number 812-9635 - Reverse, mid-mount, 1.75 mm contact height
Stock number 812-9641 - Top Mount, 4.07 mm contact height
Stock number 812-9645 - Top Mount, stacked, height 15.50 mm
Stock number 812-9654 - Vertical Mount, stacked, height 15.00 mm
Stock number 812-9657 - Vertical Mount, stacked, height 14.88 mm

Features and Benefits

• Meets the High-Durability-Class requirements of USB 3.0 specifications
• Robust design withstands 5000 mating cycles
• High-speed data rate 10 times faster than USB 2.0
• High temperature halogen free housings
• Keying and polarization
• PCB location and retention
• Range of mounting configurations for design flexibility
• Stacking versions available
• Range of contact heights for low profile applications

Product Application Information

USB 3.0 connectors are suitable for use in high-speed computing, consumer and automotive applications. These applications include high end computing, PCs, optical disks, hard disks, home appliances, home security, automotive infotainment and driver assist.

Molex USB Connector, High-Temperature Thermoplastic Housing, Copper Alloy Contacts - 48391 Series - 48391-0003

Give the communication capability of your equipment an upgrade with this USB connector from Molex. It transmits power and data to devices and lets you connect components like thumb drives to your machines. The connector's copper alloy contacts are highly conductive, so you can be sure of reliable signal transmission. Gold plating ensures these contacts shrug off corrosion to deliver long-term performance. What's more, the adapter's blue nylon thermoplastic housing withstands high temperatures, so it won't lose form in harsh settings.

• Wide operating temperature range between -20°C and +85°C for use in demanding settings
• Through-hole mounting style for a firm link to the equipment's circuit board
• Withstands up to 5,000 mating cycles for long-term performance

Applications

• Consumer electronics
• Laptops and desktop computers

What transmission speed does this connector support?

This unit is USB 3.0 compatible, so you can get transfer rates up to 4.8Gbit/s for lightning-fast data exchange.
