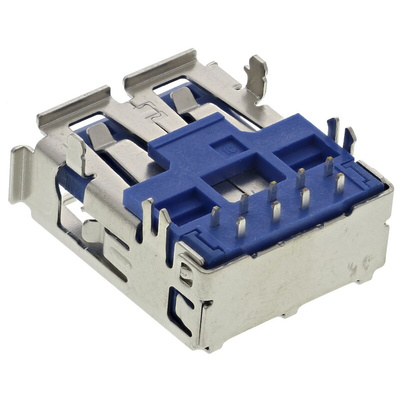

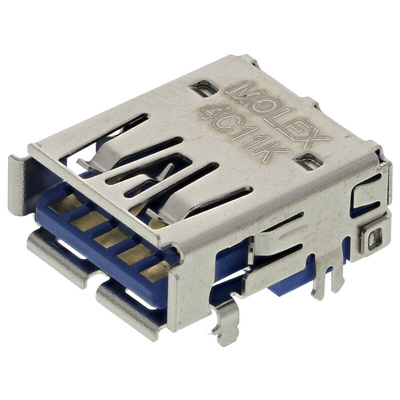

48392-0003, Molex Right Angle, Through Hole, Socket Type A 3.0 USB Connector, Разъем

Molex Type A USB 3.0 Connectors

Type A USB 3.0 Connectors with a robust and reliable design that meets the High-Durability-Class requirements of USB 3.0 specifications and able to withstand 5000 mating cycles. These USB 3.0 connectors provide a high-speed data rate 10 times faster than USB 2.0 and ensures that devices are powered sufficiently when required. The housings of these USB 3.0 connectors are made from high temperature halogen free blue nylon that can withstand IR (infrared) reflow temperatures of up to 225°C. Keying and polarization features enable accurate mating with the plug connector. PCB location and retention features provide accurate positioning and a secure connection on the PCB. These USB 3.0 connectors are available with a range of mounting configurations for design flexibility and stacked, dual port versions are also available. The Different contact heights on the connectors allow for vertical space savings when used in low profile applications.
Stock number 812-9617 - Top Mount, 6.09 mm contact height
Stock number 812-9623 - Reverse, mid-mount, 0.36 mm contact height
Stock number 812-9626 - Reverse mount, 4.06 mm contact height
Stock number 812-9629 - Top Mount, 4.00 mm contact height
Stock number 812-9632 - Reverse, mid-mount, 1.00 mm contact height
Stock number 812-9635 - Reverse, mid-mount, 1.75 mm contact height
Stock number 812-9641 - Top Mount, 4.07 mm contact height
Stock number 812-9645 - Top Mount, stacked, height 15.50 mm
Stock number 812-9654 - Vertical Mount, stacked, height 15.00 mm
Stock number 812-9657 - Vertical Mount, stacked, height 14.88 mm

Features and Benefits

• Meets the High-Durability-Class requirements of USB 3.0 specifications
• Robust design withstands 5000 mating cycles
• High-speed data rate 10 times faster than USB 2.0
• High temperature halogen free housings
• Keying and polarization
• PCB location and retention
• Range of mounting configurations for design flexibility
• Stacking versions available
• Range of contact heights for low profile applications

Product Application Information

USB 3.0 connectors are suitable for use in high-speed computing, consumer and automotive applications. These applications include high end computing, PCs, optical disks, hard disks, home appliances, home security, automotive infotainment and driver assist.

Molex USB Connector, 1 Port, 1.8A Maximum Current Per Contact - 48392 Series - 48392-0003

Need a trusty middleman to carry data signals between pieces of equipment? Go for this USB connector from Molex. It's an easy way to connect devices like thumb drives – or even peripherals like keyboards and mice – to your machine, so you get seamless communication. The connector is USB 3.0 compatible, meaning it has the power to transmit information in the blink of an eye thanks to its 4.8Gbit/s transfer rate.

• Through-hole mounting for a secure hold on your circuit board
• Thermoplastic housing to resist reflow temperatures during mounting
• Withstands up to 5,000 mating cycles for durability

Applications

• Radio and TV broadcast studios
• Security systems
• Transportation industry

What's the operating temperature range of this connector?

This unit performs at its best in a temperature range between -20°C and +85°C, making it suitable for demanding conditions.

Molex USB Connectors

Molex USB 3.0 Connector Brochure

USB 3.0 Reverse Type A Through Hole Right Angle PCB Receptacle Contact Height 4.06 mm - Drawing

Datasheet
