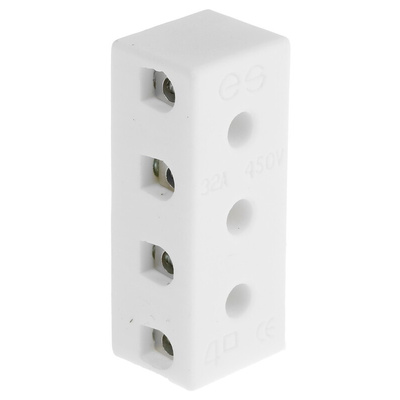

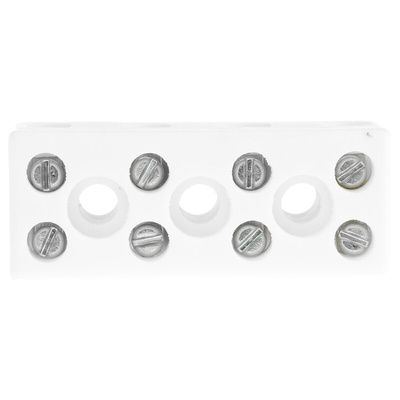

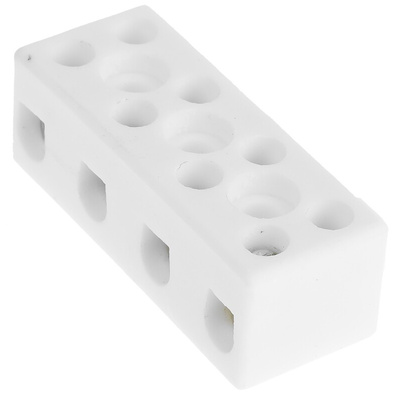

RS PRO Non-Fused Terminal Block, 4-Way, 5 → 32A, 12 AWG Wire, Screw Down Termination

RS PRO, 4-Way, 12 AWG, Ceramic Non-Fused Terminal Block, 450 V

If you need a non-fused terminal block that can cope with extremely high-temperature environments, this RS PRO component is ideal — it can operate effectively up to +800°C. Not only is this non-fused ceramic terminal block significantly more heat-resistant than standard plastic terminal blocks, but it's also highly resistant to chemicals and flames. The nickel-plated brass contacts and galvanised steel screws prevent corrosion, oxidation and degradation.

Used to connect wires quickly and easily, this 4-way ceramic terminal block has a screw-based mounting and termination method. This is particularly suited to making secure, semi-permanent connections in circuits, as you can easily connect and disconnect it with the simple adjustment of a screw.

This RS PRO non-fused terminal block has been stringently tested and it also comes with a CE certification for mechanical and electrical safety. It's commonly used for circuits in high-temperature equipment, such as hot glue guns, furnaces and infrared heaters.

Features and Benefits

• Non-fused, white ceramic terminal block
• Screw mounting type and screw-down termination method
• Current rating of 5-32 A
• Voltage rating of 450 V
• CSA cable length of 4 mm²
• Wire size of 12 AWG
• Operating temperature range of -40°C to +800°C
• Nickel-plated brass contacts
• Galvanised steel screws

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
