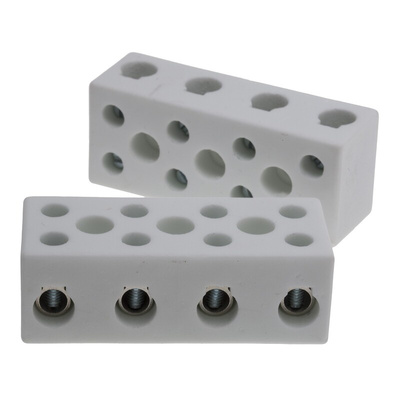

RS PRO Non-Fused Terminal Block, 4-Way, 30 → 76A, 6 AWG Wire, Screw Down Termination

RS PRO 4 Way Non-Fused Terminal Block, 6 AWG, 30 to 76 A, Screw, 16 mm², Screw Down Terminals, Ceramic, 450 V

This RS PRO terminal block insulates and connects open wires. Use it to make connections to run your electrical components and promote safety by insulating exposed wires to prevent electric shocks.
The ceramic construction makes the block able to withstand chemical damage and temperatures of up to +800°C, meaning it's suitable for use in harsh conditions. Nickel-plated brass lines the housing portals to ensure the effective conduction of electrical current. Screw-down clamping terminals tightly secure wires so that they don't come loose or disconnect.
Compliance with the requirements of the Restriction of Hazardous Substances (RoHS) assures you that this item contains only minimal amounts of any hazardous materials. The product is suitable for use in extreme industrial environments.

Features and Benefits

• Cable cross-sectional area of 16 mm²
• White colour
• Brass contact material
• Nickel contact plating
• Current rating of 30 to 76 A
• Enclosed
• Not fused
• Ceramic material
• Maximum operating temperature of +800°C
• Minimum operating temperature of -40°C
• Screw mounting type
• Four ways
• Screw down termination method
• High temperature terminal block type
• Voltage rating of 450 V
• Wire size of 6 AWG (American Wire Gauge)
