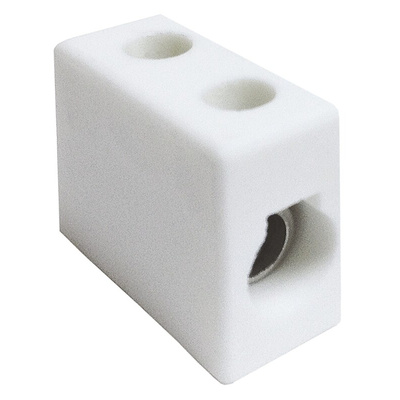

RS PRO Non-Fused Terminal Block, 1-Way, 30 → 76A, 6 AWG Wire, Screw Down Termination

RS PRO 1 Way Non-Fused Terminal Block, 6 AWG, 30 to 76 A, Screw, 16 mm², Screw Down Terminals, Ceramic, 450 V

Need a durable way to insulate and connect open wires? Use this terminal block from RS PRO. As it insulates exposed wires, it prevents electric shocks to keep you and your work environment safe.


The block is made of a chemical-resistant ceramic material that can withstand temperatures of up to +800°C. This makes it a good choice for use in extreme environments. To ensure effective electrical current conduction, the housing portals are lined with nickel-plated brass. It also has clamping terminals that screw down firmly so wires don't disconnect or come loose.


This item conforms to the Restriction of Hazardous Substances (RoHS) regulations, meaning that only trace amounts of hazardous chemicals are present. The terminal block is designed for use in severe industrial environments and high-temperature applications.

Features and Benefits

• Cable cross-sectional area of 16 mm²


• White colour


• Brass contact material


• Nickel contact plating


• Current rating of 30 to 76 A


• Enclosed


• Not fused


• Ceramic material


• Maximum operating temperature of +800°C


• Minimum operating temperature of -40°C


• Screw mounting type


• One way


• Screw down termination method


• High-temperature terminal block type


• Voltage rating of 450 V


• Wire size of 6 AWG (American Wire Gauge)

RS Pro Datasheet
