RS PRO Non-Fused Terminal Block, 1-Way, 5 → 32A, 12 AWG Wire, Screw Down Termination

RS PRO 1 Way Non-Fused Terminal Block, 12 AWG, 5 to 32 A, Screw, 4 mm², Screw Down Terminals, Ceramic, 450 V

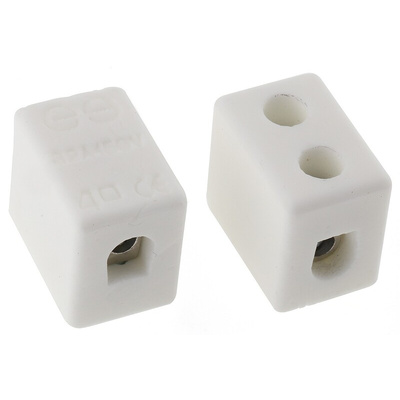

Looking to safely connect two or more open wires? This single-pole terminal block from RS PRO insulates your exposed wires, preventing electric shocks to keep you and your workspace safe.


The wires are firmly held in place thanks to the brass screw clamps, so they won't come loose when the block is subjected to soft vibrations or bumps. The block is made from a ceramic material that provides resistance to chemicals and temperatures of up to +800°C, making it a good choice for harsh environments. It also has nickel-plated brass contacts to ensure good conductivity and reliable connections.


You can use this terminal block in extreme industrial settings. As it meets Restriction of Hazardous Substances (RoHS) requirements, it contains only trace amounts of any harmful materials.

Features and Benefits

• Cable cross-sectional area of 4 mm²


• White colour


• Brass contact material


• Nickel contact plating


• Current rating of 5 to 32 A


• Enclosed


• Not fused


• Ceramic material


• Maximum operating temperature of +800°C


• Minimum operating temperature of -40°C


• Screw mounting type


• One way


• Screw down termination method


• High temperature terminal block type


• Voltage rating of 450 V


• Wire size of 12 AWG (American Wire Gauge)
