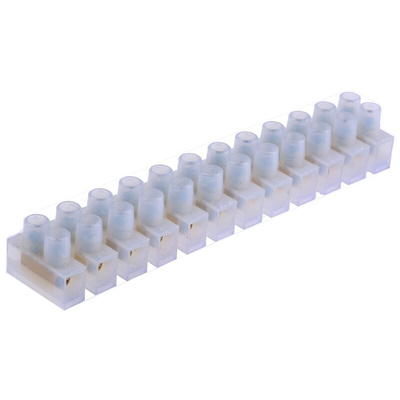

RS PRO Non-Fused Terminal Block, 12-Way, 3 → 24A, 12 AWG Wire, Screw Down Termination

RS PRO 12 Way Non-Fused Terminal Block, 12 AWG, 3 – 24 A, Screw, 4 mm², Screw Down Terminals, Polyamide, 380 V

Use this RS PRO terminal block to securely connect 12 pairs of wires. The product insulates open wires to protect you against electrical shocks and decrease the chances of a fire breaking out.
The housing is made of flame-resistant polyamide that can withstand temperatures of up to 105°C which means you can use it in hot environments. Its material is slow to ignite and doesn't spread fires. The captive and raised screw-in clamps firmly connect your wires to the terminals so they won't come loose when the terminal block is exposed to bumps or vibrations.
This item complies with the requirements of the Restriction of Hazardous Substances (RoHS), meaning it contains minimal amounts of any metals like lead or mercury that can harm you. You can use it for electrical connections in factories, workshops and garages.

Features and Benefits

• Cable cross-sectional area of 4 mm²
• Natural colour
• Brass contact material
• Current rating of 3 to 24 A
• Enclosed
• Not fused
• Polyamide material
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Screw mounting type
• Twelve ways
• Screw down termination method
• Terminal block strip type
• Voltage rating of 380 V
• Wire size of 12 AWG (American Wire Gauge)
