249-117, Wago 249 Series End Stop for Use with DIN Rail 35

End Stops - 249 Series

Wago 249 series end stops.

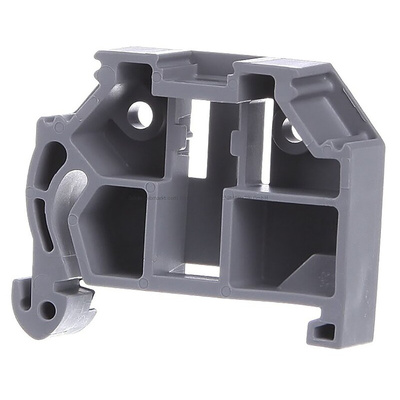

Wago End Cover, 10mm Width, 28.2mm Height - 249 Series - 249-117

Looking to secure the terminal blocks on your setup? Snap to it with this end cover from Wago. It simply clips onto any standard TS35 DIN rail without the need for screwing. So, it's swift and tool-free to fit. This makes it handy for speeding up large and complex installations on electrical distribution and control panels. Two clamping plates keep it in position, putting a stop to movement on horizontal and vertical rails. A compact width of 10mm means it needs minimal space to do its job.

Features & Benefits

• Polyamide construction is electrically insulating and resistant to wear
• Flame-retardant material means vertical burning stops within 10 seconds
• Light weight of 5.1g keeps pressure off wall-mounted DIN rails

Applications

• Electrical distribution
• Control panels
• Industrial automation
• Safety systems

What's a TS35 DIN rail?

A TS35 DIN rail is an industry-standard way of mounting electrical components, including terminal blocks, circuit breakers and motor control and automation devices. It's also known as a top hat rail, thanks to the symmetrical and rectangular bowl shape of its cross-section.

249 Series

Screwless end stop 10 mm wide Data Sheet
