7TCA297180R0363 EXN04MLC1K, Kopex-EX C1 Series Metallic Brass Cable Gland Kit, M20 Thread, 12mm Min, 20mm Max, IP66, Комплект вводов (сальников)

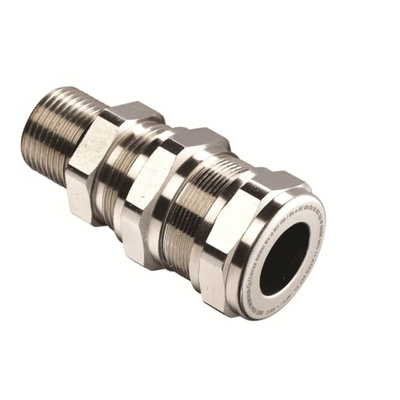

Kopex-EX Cable Gland Kit, Double Compression Gland, Flame-Proof - C1 Series - EXN04MLC1K

Looking for an electrical connector that stands the test of time? Choose this cable gland kit from Kopex-EX. Its double compression sealing glands ensure superior cable retention and also provide strain relief, so there's little risk of your cable snapping, cracking or twisting. You can put this robust fitting to the test in harsh environments, as it's made from flame-proof material for safety. It's the ideal partner for steel wire armoured cable and other conductors used for mains supply power.

Features & Benefits

• Tough nickel-plated brass construction ensures it's built for the long haul
• Resists corrosion, for compatibility with humid settings
• IP66-rated connection when correctly fitted is dust-tight and protected against high-pressure water jets
• Broad operating temperature range between -40°C and +100°C makes it suitable to use in extreme conditions

Applications

• Data and telecommunication centres
• Automotive manufacturing
• Mining and minerals processing
• Instrumentation

What do I get in this cable gland kit?

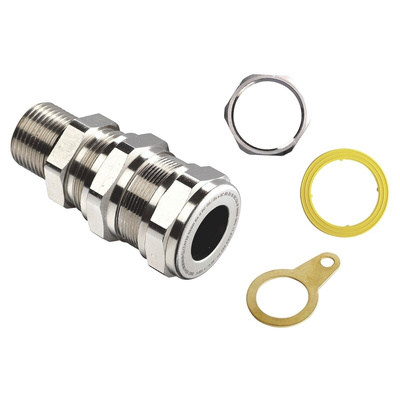

Along with a double compression cable gland, you get an earth tag, shroud, locknut and washer, so you've got all the components you need to get on with installation immediately.

C1 Series Ex Data Sheet
