EXN06MMC1K-RS, Kopex-EX C1 Series Metallic Brass Cable Gland Kit, M32 Thread, 20mm Min, 33mm Max, IP66, Комплект вводов (сальников)

Kopex-EX Cable Gland Kit, Single Core, 20 to 30mm Cable Diameter Range - C1 Series - EXN06MMC1K-RS

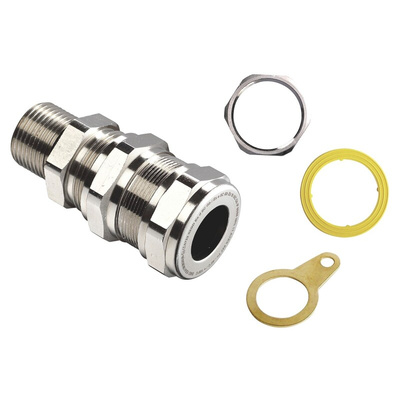

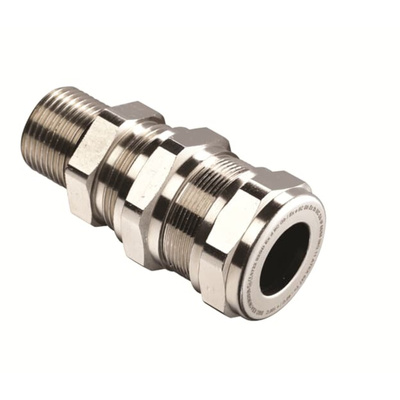

Safely connect your wire to a cable gland using this cable gland kit from Kopex-EX. This set includes a gland and locknut as well as a washer and an earth tag, so you have everything you need to complete the job. Thanks to the threaded design of the gland, you can quickly attach it to your cable without needing any tools. The gland is made from brass which offers resistance to impacts and corrosion. A wide operating temperature range between -40˚C and +100˚C means the components in this kit can withstand use in harsh environments.

Features & Benefits

• Earth tag redirects potentially harmful current to the ground, preventing system downtime
• Flameproof for safe use in areas with fire risks

Applications

• Manufacturing industry
• HVAC systems
• Automotive engineering
• Computer devices
• Packaging equipment

What type of cables can I use this cable gland kit with?

This component is suitable for use with single-core steel wired armoured cables, steel wired braid cables and aluminium wired armour cables, making it a versatile choice. For added versatility, it fits cables with diameters ranging from 20 to 33mm.

C1 Series Ex Data Sheet
