7TCA297180R0407 EXN04MLC2K, Kopex-EX Metallic Brass Cable Gland Kit, M20 Thread, 10mm Min, 16mm Max, IP66, IP68, Комплект вводов (сальников)

Kopex-EX Cable Gland Kit, Single Core, Locknut Included - C2 Series - 7TCA297180R0407 EXN04MLC2K

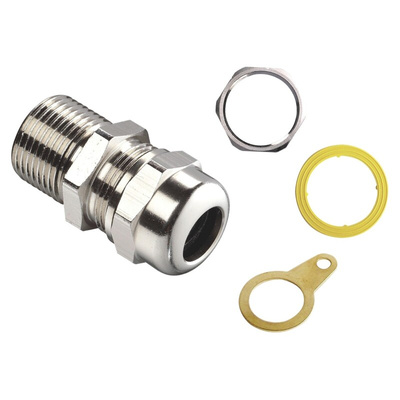

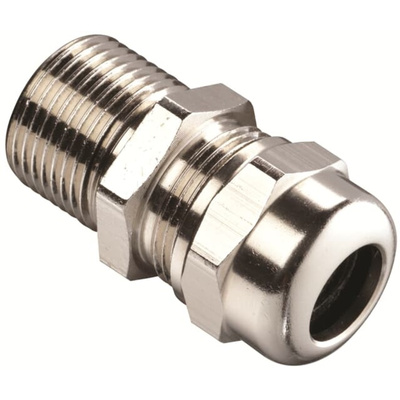

Seal off your electrical installation – without rummaging for parts – thanks to this complete cable gland kit from Kopex-EX. It provides you with everything you need to terminate a cable, including the gland itself, plus a washer, locknut, earth tag and shroud. You can use it with unarmoured cables in standard industrial and automation applications, thanks to its M20 thread termination. To fix it in place, start by stripping off a section of the cable's outer insulation. Then fit the gland into the cable end and secure it in place with the locknut and washer.

• Fits cable diameters between 10 and 16mm for versatility
• Brass material provides resistance against corrosion and wear, so tolerates damp and heavy-duty settings
• Neoprene sealing ring remains stable when exposed to chemicals and heat
• Flameproof for safety in volatile environments

Applications

• Waste treatment plants
• Mining industry
• Factories

Is this cable gland kit suitable for use in extreme environments?

Yes, it has a broad operating temperature range between -40°C and +100°C, so it stands up to the demands of harsh conditions.

C2 Series Datasheet
