TDK-Lambda Switching Power Supply, HWS50A-12/A, 12V dc, 4.3A, 50W, 1 Output, 120 → 370 V dc, 85 → 265 V, Источник питания

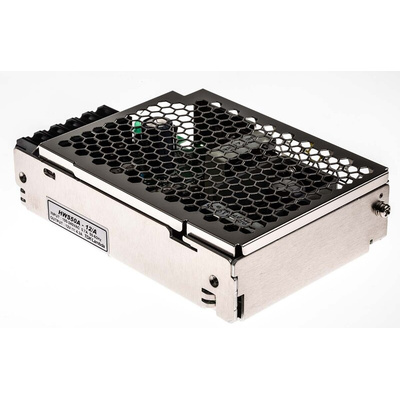

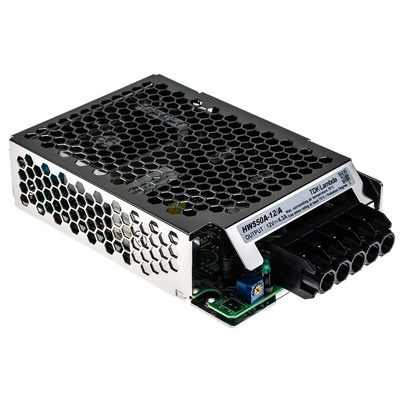

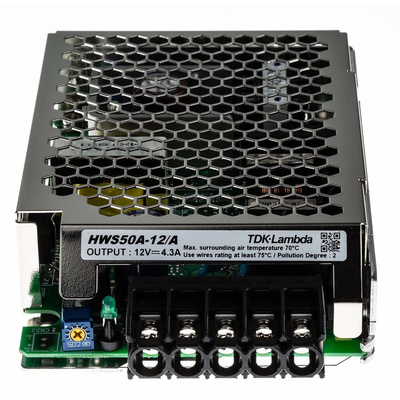

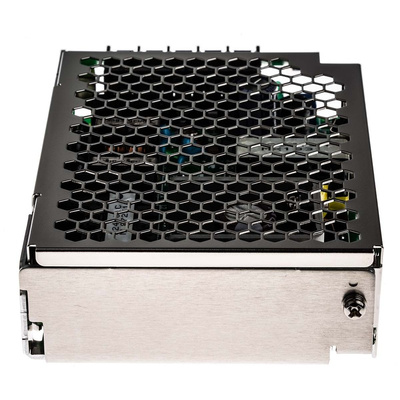

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda HWS-A series 50W single output AC to DC embedded switch mode power supply has an output current rating of 4.3A at 12VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 370VDC. The series comprises of 5 models rated from 15W to 150W. A significant upgrade of the established HWS series, it is still compatible with the new HWS-A series to enable an easy upgrade. This switch-mode power supply is up to 12% lighter as compared to the previous series as well as features up to 91% efficiency and very low power consumption at no load, contributing to a reduction in environmental impact.
Note:
Only the products with the suffix A at the end of the part number have a cover fitted, while the others have an open frame.

Features and Benefits

Easy system cooling
Limited life time warranty
Low cost
Supports global use
Wide range AC input

Applications

Broadcast
Communications
Factory automation
LED display and signage
Process control
Test and measurement

Certifications

CSA approved
EN 60950-1
EN55011/EN55022
FCC approved
UL approved
UL508 (with cover)
VCCI curve B

HWS-A_15W-150W_EN_datasheet
