750XBXH-24D, Schneider Electric Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT, Реле

750H Series Power Relays

750H series relays are hermetically sealed and are specially designed for use in hazardous locations.

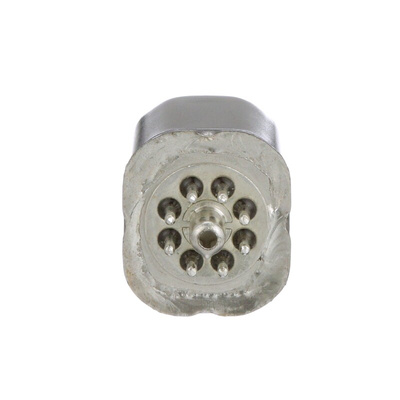

Octal style mounting
12 A maximum switching current ideal for automation and control applications
DPDT & 3PDT contact configuration
Socket mount option

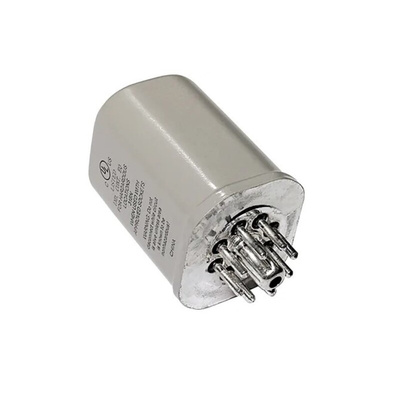

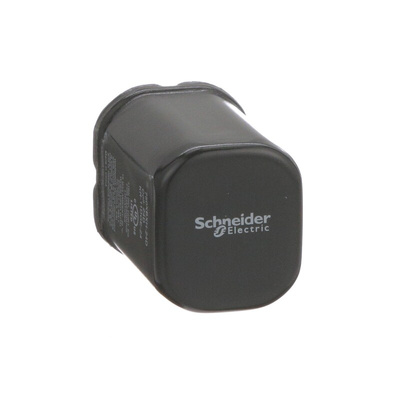

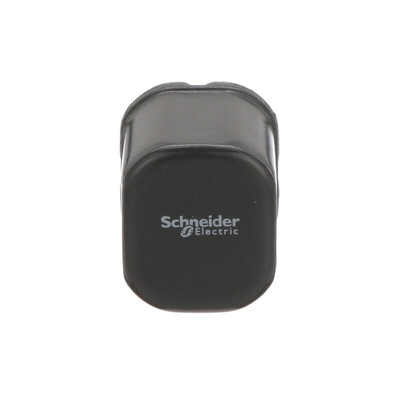

Schneider Electric Power Relay, 8-Pin Connection, 300V Maximum Voltage Rating - 750H Series - 750XBXH-24D

Take charge of energy flow through your system with this power relay from Schneider Electric. In response to current, its internal electromagnetic coil opens or closes a circuit, giving you a reliable way to switch and control equipment. The unit has highly conductive silver-alloy contacts, so you can count on efficient performance. It quickly clicks into a socket (such as 826-9853) for hassle-free installation. An IP67 rating means this power relay withstands dust and short-term water submersion, so it handles tough wash-down conditions with a hiccup.

Features & Benefits

• Responds in just 20ms for fast switching
• Electrical lifespan of 100,000 cycles means it's long-lasting
• Slots into tight spaces, thanks to dimensions of 36.5 (W) x 52.5 (H) x 41.2mm (D)
• Maximum power consumption of 1.2W so it saves energy

Applications

• Surveillance systems
• HVAC setups
• Industrial automation

Can I use this power relay as part of an uninterruptible power supply?

Yes, its DPDT contact layout lets it independently control two circuits at once, so it's a safe bet for swapping between mains power and a backup battery in an uninterruptible power supply.

Datasheet

750XBXH-24D Datasheet

Catalogue - SE Relays General Purpose Relays
