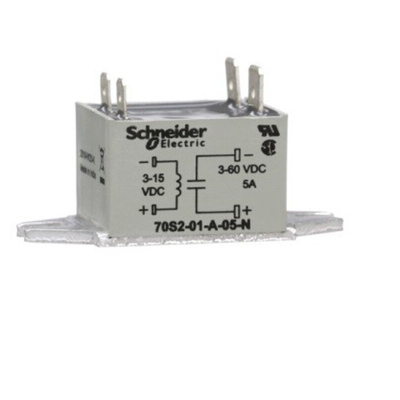

70S2-01-A-05-N, Schneider Electric 70S2 Series Solid State Relay, 5 A Load, Panel Mount, 60 V dc Load, 15 V dc Control, Реле

Schneider Electric Solid State Relay, 10mA Off State Leakage Current, SPNO Configuration - 70S2 Series - 70S2-01-A-05-N

Need a speedy switch to optimise the performance of your medium-power applications? This MOSFET solid state relay from Schneider Electric delivers rapid-fire ON/OFF DC switching to boost efficiency. With no movable parts, the unit suffers minimal wear as it works, resulting in a longer service life. Optical isolation lends further protection to keep it in tip-top condition. A compact design, with dimensions of 31.2 (L) x 22.9 (H) x 26.2mm (D), makes this a space-saving option that squeezes easily onto a densely packed panel.

Features & Benefits

• Quick connect terminals help with speedy installation
• Load voltage range between 3 to 60V DC for wide compatibility
• Broad operating temperature range between -40°C and +100°C for use in challenging conditions

Applications

• Medical applications
• HVAC systems
• Automated factory processes
• Traffic control operations

Is contact arcing a risk in solid state relays?

No, contact arcing only occurs in mechanical relays with moving parts where the contacts spark when switching from one position to another. Plus, a solid state relay has reduced interference because it doesn't have any electromagnets.

What's the maximum turn-on time of this solid state relay?

The maximum turn-on time is 75ms, so you can be sure of prompt responses.
