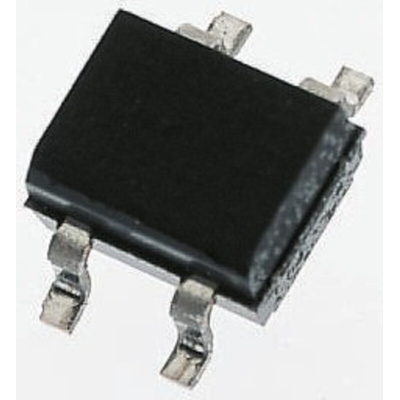

DF1506S-E3/77, Vishay Bridge Rectifier, 1.5A, 600V, 4-Pin, Мостовой выпрямитель

Bridge Rectifiers for PCB Surface Mount, DF15xxS Series, Vishay Semiconductor

Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
High surge current capability
Ideal for automated placement
Printed Circuit Board (PCB) reflow soldering

Approvals

UL, E54214

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S, Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
