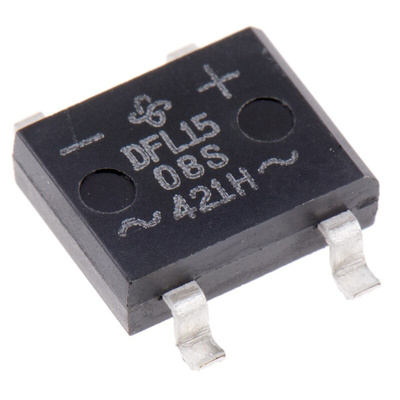

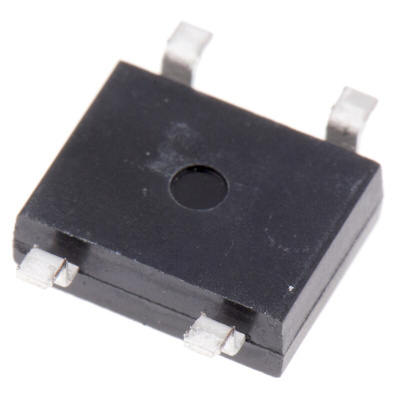

DFL1508S-E3/77, Vishay Bridge Rectifier, 1.5A, 800V, 4-Pin, Мостовой выпрямитель

Bridge Rectifiers for PCB Surface Mount, DFL15xxS Series, Vishay Semiconductor

Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Low profile: typical height of 2.5mm
Ideal for automated placement
High surge current capability
Ideal for Printed Circuit Board (PCB) reflow soldering

Approvals

UL, E54214

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

DFL15005S, DFL1501S, DFL1502S, DFL1504S, DFL1506S, DFL1508S, DFL1510S, Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
