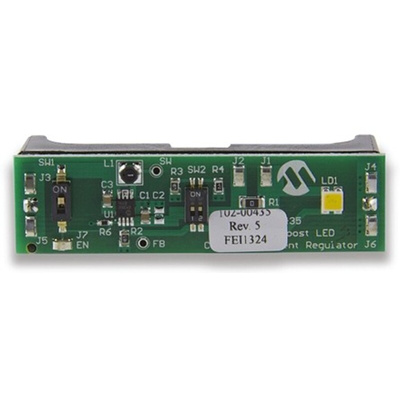

Boost LED Regulator Evaluation Board
The MCP1643 Synchronous Boost LED Constant Current Regulator Evaluation Board is developed to help design engineers reduce the product design cycle time. The evaluation board demonstrates the MCP1643 in a boost converter application supplied by one AA battery (one-cell alkaline, NiCD or NiMH), or from an external voltage source, which drives an LED with three selectable currents. Output currents of 25, 50, 75 and 100mA can be selected.
Start-up voltage: 0.65V
Mechanical battery reverse polarity protection
Thermal shutdown at 150°C with +25°C hysteresis
Input voltage range, VIN: 0.35V to 2.5V, with VIN < VOUT
PWM Switching Frequency: 1 MHz
Enable state selectable using mini-dip switch on board
1.6A Peak Input Current Limit
Over-temperature Protection (if the die temperature exceeds 150°C, 25°C hysteresis)
ADM00435, MCP1643 1 MHz Low Start-up Voltage Synchronous Boost LED Constant Current Regulator| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
