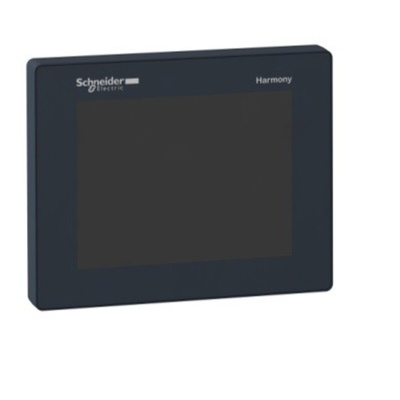

HMISCU8A5, Schneider Electric HMISCU Series Magelis SCU Touch Screen HMI - 5.7 in, TFT Display, 320 x 240pixels, Дисплей

HMISCU - HMI Controller

Magelis SCU controller delivers adequate functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

The integrated design of Magelis SCU delivers maximum functionality while keeping installation easy. Especially suitable for small machines and simple processes control, its state-of-the-art display provides a crystal-clear readability.

Magelis SCU consists of:
- Modular STU screen, and the flexible mechanical mounting system Ø 22mm hole

State of the art display
Rich communication capabilities
Easy machine maintenance and upgrade

Schneider Electric Touch Screen HMI, 24V DC Rated Supply Voltage, 24W Power Consumption - HMISCU Series - HMISCU8A5

Speak to your industrial equipment in a language it understands with this touch screen HMI from Schneider Electric. Thanks to a 320 x 240-pixel resolution on a 5.7in display, you get crystal-clear graphics that make monitoring your machinery child's play. The unit comes in a robust PC/PBT and PAA housing that makes it tough enough to brave the wear and impact that come with industrial environments. Compact dimensions of 129.4 (H) x 163 (W) x 76.22mm (D) make installation easy on small panels where space is at a premium.

Features & Benefits

• IP65 rating means that it's dustproof and can withstand low-pressure water jets
• Wide operating temperature range between 0°C and +50°C for use in challenging settings
• LED backlight provides illumination for a clear view when you're working in dark spots
• 128MB of onboard memory to carry configuration and control data

Applications

• Water treatment facilities
• Electrical panels
• Food processing industries

What kind of communication ports does this HMI have?

This unit has numerous ports to interface with external hardware like your computers – there's a serial port to link RS232/RS485-compatible devices, two USB ports, an RJ45 port for internet connections and a CANopen DB9 master bus for quick and easy configuration.
