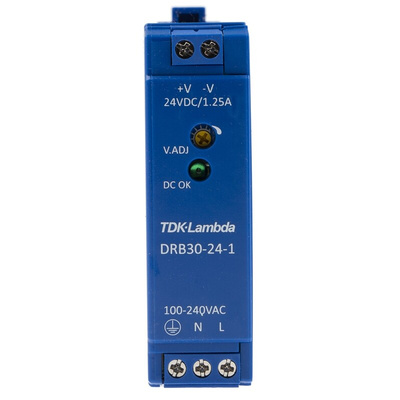

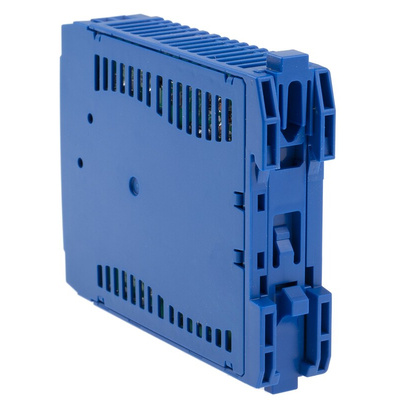

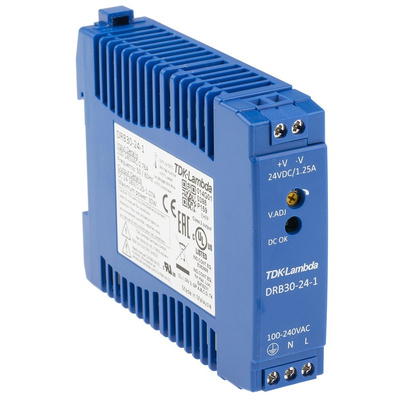

DRB-30-24-1, TDK-Lambda DRB Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 1.25A Output, 30W, Блок питания

TDK-Lambda DIN Rail Power Supply

The TDK-Lambda DRB series switch-mode DIN-rail power supply have 1.25A output current at 24VDC output voltage. Its most outstanding features are compact size and energy efficiency. This power supply has a universal single-phase input voltage rating ranging between 85VAC and 264VAC with adjustable output voltage. Its high immunity makes it suitable for almost every situation. The adjustable output voltage ranges between 24VDC and 28VDC

Features and Benefits

Easy system integration
High efficiency up to 90%
LED indicator
Operation temperature ranges between -20°C and 70°C
Power rating is 30W
Ripple factor and noise is 40mV

Applications

Broadcasting
Factory automation
general-purpose industrial applications
Process control
Renewable energy
Test and measurement

Certifications

CISPR22 class B
CSA
EN60950
UL approved

DRB Series Data Sheet
