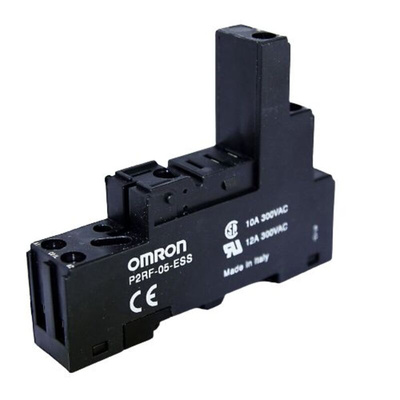

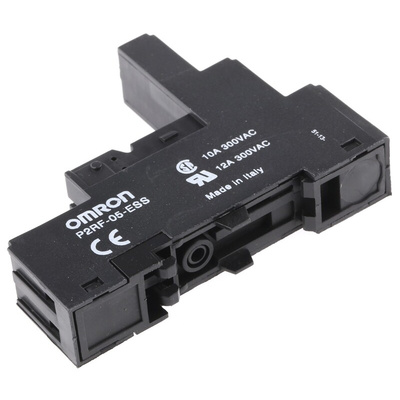

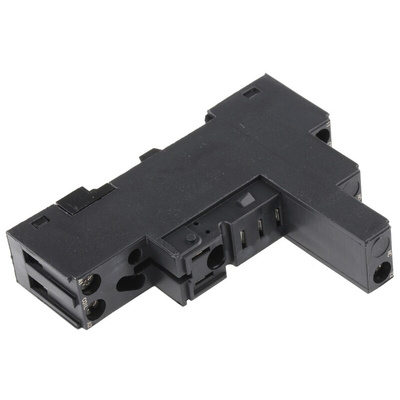

P2RF-05-ESS, Omron P2RF 250V ac DIN Rail Relay Socket, for use with G2R Relay, Контактная колодка

P2RF- ESS Series

Omron P2RF-ESS series rise-up terminal sockets.

Double wiring available on all the terminals
Release lever enables easy replacement
Finger-protection: IP20
UL/CSA/TUV/Lloyd's certification
RoHS certified
Operating temperature: -25º to +70º
Socket accessories also available

OMRON Relay Socket, Rise-Up Terminals, 15.6mm Width - P2RF Series - P2RF-05-ESS

Ensure your G2R-series relay sits comfortably on your DIN rail with this relay socket from OMRON. You plug in the relay at the front and there's a clip at the back for swift and secure mounting. Double wiring on the terminals makes connecting it to your motor, heater or lighting circuit a piece of cake. Use the wide openings on the side to push in wires sized between 20 to 14AWG. To boost versatility, it accepts both round and forked ferrules. Thanks to the rise-up box terminal design, you can trust connections to stay clamped tightly for the long term.

Features & Benefits

• Operates safely between -25°C and +70°C, so it can handle plant and manufacturing temperatures
• Compact width of 15.6mm to fit on short rails and inside compact enclosures
• IP20 rating means your fingers are protected from shocks during installation and use

Applications

• Food and beverage industry
• Panel building
• Automotive industry
• HVAC systems

Can I switch between relays with this socket?

Yes, it's no problem to rejig your setup, so long as you pick compatible relays from the G2R series.

Datasheet
