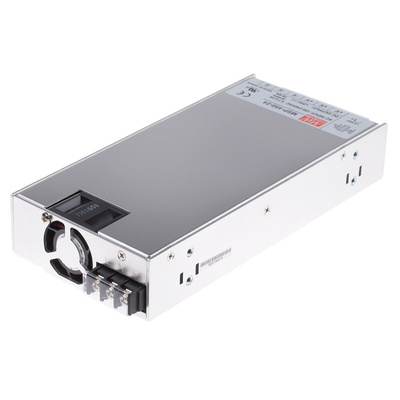

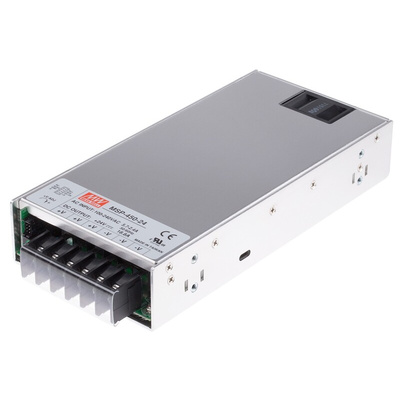

MEAN WELL Switching Power Supply, MSP-450-24, 24V dc, 18.8A, 451W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Mean Well MSP-450 Series 450W AC-DC Enclosed Switch Mode Medical Power Supply

MSP-450 Series 450W AC-DC enclosed switch mode medical power supply with universal full range Vac input a high efficiency of up to 89.5%, forced air cooling via built-in long life DC fan, built-in active PFC function, low no load current consumption and a low profile design. These MSP-450 series 450W AC-DC enclosed switch mode power supplies have a low leakage current of 300μA at 264Vac and are medically approved to IEC60601-1 as well as complying with international medical safety regulations (MOOP level). Typical applications for these 450W medical power supplies include medical equipment, chemical and biological detection equipment, analysis facilities and other applications that require a low no load power consumption.

Universal AC input / Full range
Built-in active PFC function: PF>0.95
Medically approved to IEC60601-1
High efficiency of up to 89.5%
Withstand 300VAC surge input for 5 seconds
Low no load power consumption of <0.6W
Built-in remote sense function
Built-in constant current limiting circuit
Built-in cooling fan ON/OFF control
DC OK signal
Short circuit, overload, over voltage and over temperature protection

Standards

ANSI/AAMI ES60601-1, IEC60601-1

Approvals

cULus, CB, CE

Switch Mode - Mean Well Medical Enclosed AC/DC Power Supplies

MSP-450 Series 450W Single Output Medical Type Data Sheet
