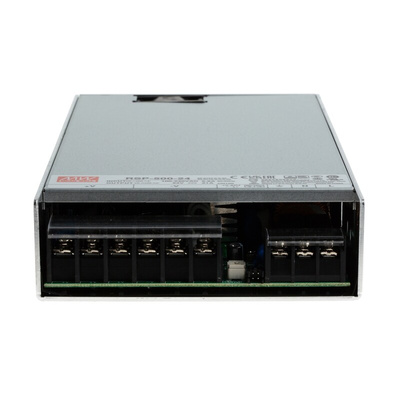

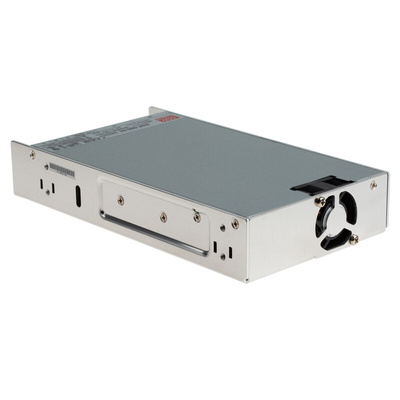

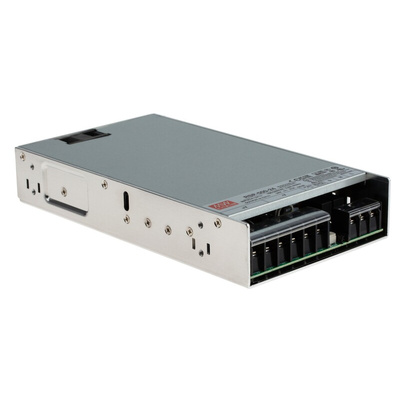

MEAN WELL Switching Power Supply, RSP-500-24RS, 24V dc, 21A, 504W, 1 Output, 120 → 370 V dc, 85 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well RSP-500 series 504W single output AC to DC embedded switch mode power supply has an output current rating of 21A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 370VDC. The ambient temperature ranges from 30°C and 50°C under full load condition and up to 70°C considering suitable derating.

Features and Benefits

Low profile, 40.5mm design for 1U installation
Built-in active PFC function
high-efficiency up to 90.5%
Forced air cooling by built-in DC fan with fan speed ON/OFF control function
Short circuit protection
Overload protection
Overvoltage and over temperature protection
Remote ON/OFF control and sense function
LED indicator for power on

Applications

Industrial control system
Mechanical
Electrical industry
Instruments
LED display or any systems that require low profile installations

Certifications

UL60950-1
TUV approved
CB approved
CE approved
EN60950-1
UL60950-1
TUV EN60950-1
EN55022 class B
EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11
EN55024
EN1000-6-2
EN61204-3
Criteria A

RSP-500 Series 500W Single Output with PFC Function Data Sheet
