3365/06-100, 3M 3365 Series Flat Ribbon Cable, 6-Way, 1.27mm Pitch, 30m Length, Ленточный кабель

0.05in (1.27mm) Pitch Ribbon Cables-Type 3365

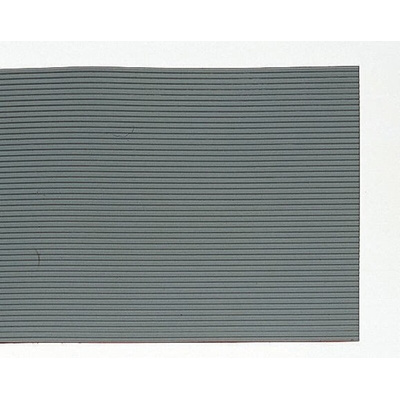

From 3M, the 3365 series of grey ribbon cable, 28 awg wire on 0.05in. centres, permits mass termination to a broad line of 3M IDC connectors. The 7x36 tinned stranded copper wire provides flexibility and extended product life. First conductor is identified by a red leading edge.

Features and Benefits

• Insulation resistance >1x10¹⁰ Ω/3m
• Suitable for mass termination
• Highly flexible

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

3M Ribbon Cable, Tinned Copper Conductors, Suits Mass Termination - 3365 Series - 3365/06-100

Want a flexible way to link computer peripherals to controller drives? Choose this ribbon cable from 3M. You get six 28 AWG wire strands spread over a cable width of 0.05 inches, so the cable's flat and handy for internal wiring as it saves space. The conductors themselves are tinned, stranded copper, so they combine superior flexibility with high conductivity, giving you quality connections in the long term. To make wiring jobs straightforward, red colour-coding on the first conductor helps you keep your eye on the ball.

Features & Benefits

• Unterminated cable ends give you free rein to pick your connector
• 30m length means there's plenty for longer runs

Applications

• Robotics systems
• Test and measurement devices
• Computer networking

What temperatures can I use this cable in?

This ribbon cable suits temperatures between -20°C and +105°C, so it's a safe bet for use in harsh environments.

Ribbon Cable Information

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
