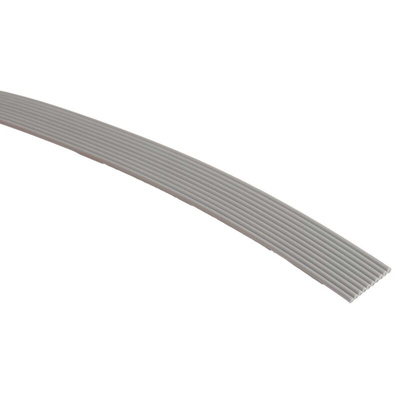

3756/10-100, 3M 3756 Series Flat Ribbon Cable, 10-Way, 0.64mm Pitch, 331m Length, Ленточный кабель

3M TPE 0.635mm Ribbon Cable

From 3M, this ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances. Designed for mass termination and flexibility the TPE ribbon cable uses 30AWG stranded conductors on 0.25 in. wire spacing.

Features and Benefits

• Signal density incresed by 0.25in. wire spacing
• TPE Insulation
• TPE (Thermoplastic Elastomer) Material

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Standards

UL, RoHS

3M 3756 Series Ribbon Cable, 7 Strands, Grey Sheath - 3756/10-100

This 3M ribbon cable is a 30 AWG, high-density flat cable with a grey sheath. It is designed to meet specific requirements in the fields of automation, electronics, electrical, and mechanical industries. The cable offers excellent performance with a characteristic impedance of 82 Ω and a voltage rating of 150 V.

Features & Benefits

• The flat ribbon cable offers a high-density solution for applications requiring efficient signal transmission
• This ribbon cable is UL approved, ensuring high safety standards and compliance with regulations
• With 7/38 core strands, the cable provides flexibility and reliability in demanding environments
• The grey sheath adds durability and protection to the cable, suitable for various industrial settings
• The 0.64 mm pitch enhances connectivity and allows for easy integration into existing systems
• The cable comes in a 10 way unterminated configuration, offering versatility in installation and use

Applications

• Used for internal wiring in electronic devices
• Ideal for connecting components in automation systems
• Suitable for signal transmission in control panels and Electrical equipment

Can it be used for industrial automation systems?

Yes, the 3M ribbon cable is well-suited for industrial automation applications due to its high-density design and reliable performance.

Will it withstand harsh environmental conditions?

The cable is designed to operate in a wide temperature range from -40°C to +105°C, making it suitable for challenging environments.

Is it easy to terminate the cable?

The 10-way unterminated configuration provides flexibility in termination, allowing for easy customization based on specific requirements.

Ribbon Cable Information

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
