APM-VOLT-APO, Trumeter Digital Voltmeter AC, DC, LCD Display 4-Digits 0.01, Вольтметр

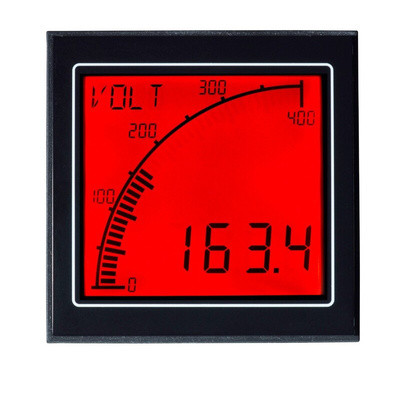

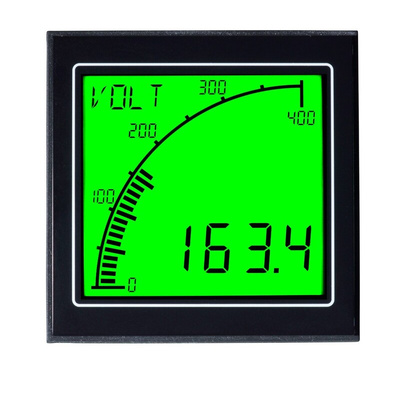

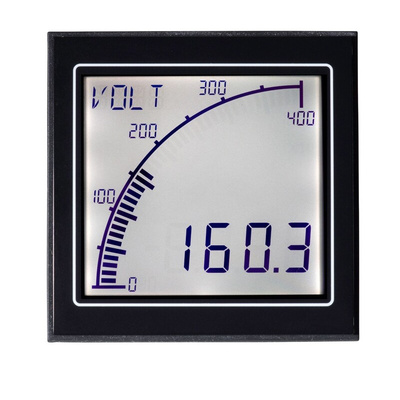

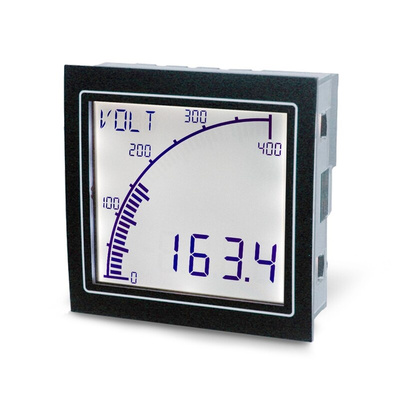

APM Digital Panel Voltmeter

The Trumeter APM is the most visible, easy to use, multi-format, programmable panel meter on the market.
The APM Digital panel voltmeter provides a flexible voltage measuring input, capable of measuring both AC and DC voltages. Easy to install, it also automatically detects AC or DC signals, boasting input ranges of 600 V dc or 528 V ac. The voltmeter is supplied with an easily programmable scale that allows you to set a bar graph scale to your own specifications. It also has 15 built-in configurations that allow you to programme centre zero, positive and negative scales.

Features and Benefits

• Large 4-digit LCD display
• 40 segment bar graph display
• Separate starburst display area for annunciators, custom messages and alarm information
• User-adjustable back light brightness, colour and intensity
• 1% accuracy
• Wide viewing angle
• Custom annunciators
• 2 Independent outputs (output models only)
• 2 Independent alarm set-points
• 00-600 V dc, 0-528 V ac input range
• 4-20 mA analogue monitor output (output models only)
• USB port to connect to PC for custom user settings
• IP65 protection

Note

All Trumeter products come with a 3 year manufacturer's warranty

Trumeter APM Digital Panel Volt Meter

APM Configurator Installation Guide

APM Advanced Panel Meters Selection Guide

APM Series Overview and Instructions
