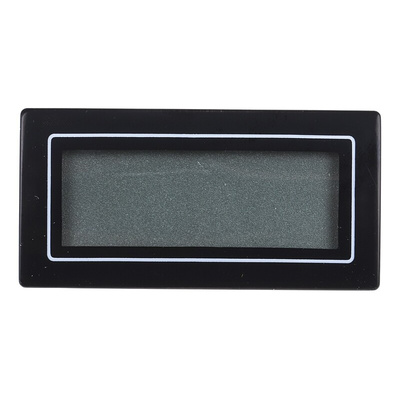

HED251-T, Trumeter Counter, 4 Digit, 10kHz, 3 V dc, Счетчик

10mm, 4 Digit Counter with Reset Function

Provides the user with a resettable counter which can be installed quickly via two spring clips which are integral to the housing

1//32 DIN housing - 24 x 48 mm
Counts low speed signals such as contact closure pulses
Leading zero suppression

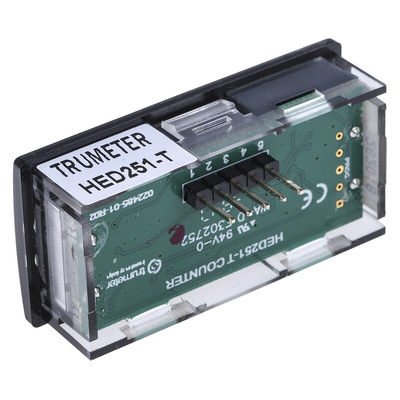

Rear connection via one 5-way plug connector
Counting input: N/O contact or open collector, negative edge triggered, threshold voltage 0.7V, max. 18V
Maximum count frequency 10Hz, min. pulse length 25ms
Reset input: as counting input

Note

All Trumeter products come with a 3 year manufacturer's warranty

LCD Trumeter Falcon Range

These multifunction, low power consumption, digital meters are all available with or without back lighting. They are housed in either 24 x 48mm or 36 x 72mm cases which clip into an appropriate panel cut-out. All have an operating temperature range of 0 to +50°C.
