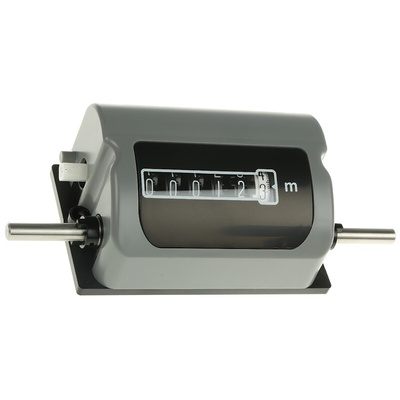

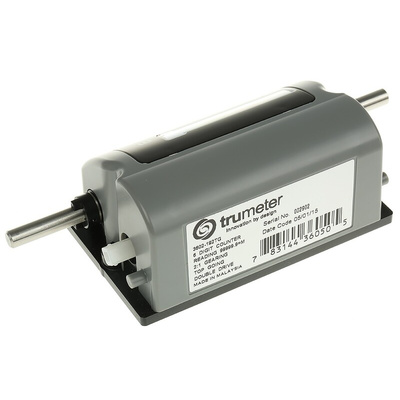

3602-192TG, Trumeter Counter, 6 Digit, Механический счетчик

Top Going Mechanical Counter

Trumeter 3602 series of mechanical totalising counters are a robustly constructed solution to high speed continuous operation applications

6 digit display with 6.4mm digit height
Offers up to 3000 counts perminute with a 2:1 gear ratio
Lever reset function which can reset to zero
Retains accurate high speed operation thanks to double oil impregnation of the shaft
Robust stainless steel base with grey ABS covered design, coupled with sophisticated lubrication methods provide the user a long term trouble free solution to their counting application
Compatible with counting wheel 815-8387

Trumeter Mechanical Counter

The Trumeter 3602 series mechanical counter is a high tech device enabled with a 6-digit display with 6.4mm digit height. It is robustly constructed for continuous operating at high speed. This counter is used with the main shaft running in double oil, impregnated bearings to ensure accurate, long term, and trouble-free service. It is supplied with a double drive and wing bush, customer configurable reset. It is useful for industrial applications.

Features and Benefits

3000rpm max shaft speed
2:1 gear ratio
36 degrees viewing angle
No audible alarm

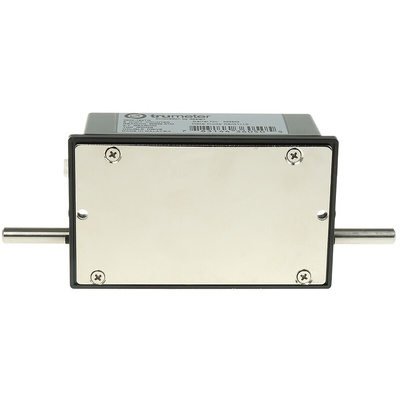

Stainless steel base with grey ABS covered design
Lever reset function that can reset to zero
Retains accurate high-speed operation due to double oil impregnation of the shaft
Compatible with counting wheel

3602 Datasheet
