702031/8-3100-23, Jumo QUANTROL PID Temperature Controller, 48 x 48mm 1 (Analogue), 1 Binary Input, 2 Output Analogue, Relay, 110, Регулятор температуры

Jumo PID Controller

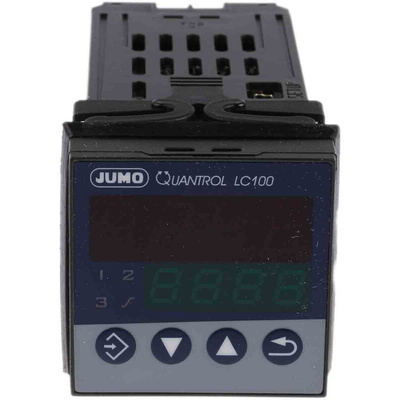

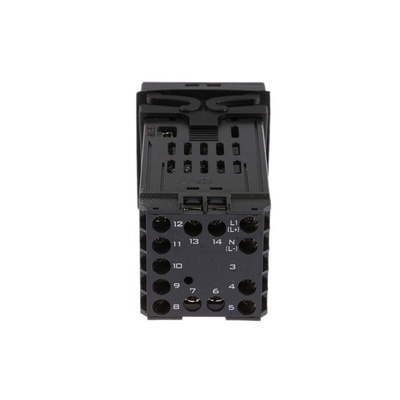

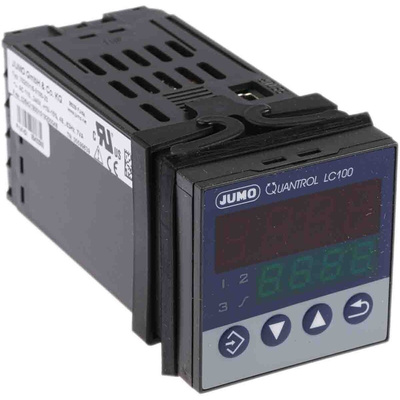

The Jumo QUANTROL LC100 series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 48mm device. It has one analogue output and one relay output (N/O contact). This controller is a compact, easy to use and self-optimising device. It is used for 2-state and 3-state control applications, as well as for the control of regulating valves or SCR power controllers via a continuous controller output. The universal analogue input is for RTD temperature probes, thermocouples, or current/voltage signals. This is easily programmable by the user.

Features and Benefits

Configurable limit value monitoring (alarms)
Control types are P, PD, PI, PID
Firing curve for pottery kilns
LED status indicator for the output
Level inhibit and key lock
Manual/automatic mode
Push-in controller insert
Ramp and timer function
RS485 interface (Modbus RTU)
Self-optimisation (auto tuning) for exact PID control
Sensor monitoring
Set point changeover
Setup interface (USB mini-B)
The values can be displayed in °C or °F
Two 7-segment LED displays (red/green)

Certifications

IP65 rated

702031 Data Sheet
