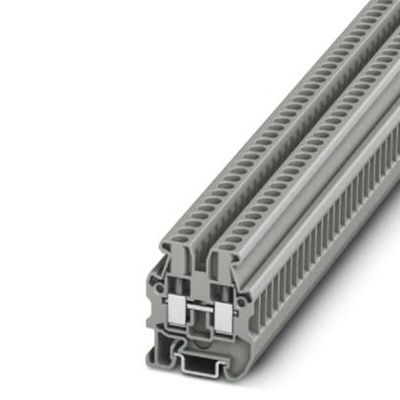

3248030, Phoenix Contact MUT 2.5 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, ATEX, IECEx

MUT Series Mini Feed-Through Terminal Blocks

Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges

Phoenix Contact Mini Feed-Through Terminal Block, 0.2 to 4mm² Conductor CSA, 2 Connections - MUT 2,5 - 3248030

Looking for a compact component to join your rail-mounted devices? Use this mini terminal block from Phoenix Contact. It connects wires with cross-sectional areas between 0.2 and 4mm² on your DIN rail, so you don't have to use external adapters. Screw termination means the unit easily achieves a reliable connection to keep your system working efficiently. If you need to change your wiring, you can release the connections by loosening the screws for hassle-free servicing.
The block fits onto a 15mm DIN rail to provide connections in smaller systems. With a narrow 5.2mm width, it packs tightly on the rail to optimise space in your control cabinet. Its 32A current rating means the device handles intense electrical loads, making it ideal for demanding applications. Conductor strips let it accept both stranded and solid conductor cores, making this a versatile option that suits many common industrial appliances.

• 9mm wire stripping length reduces the preparation needed for each conductor for faster connections
• Polyamide housing material insulates against overcurrents and short-circuits for maximum operator safety
• Has passed shock tests according to EN 50155 standards to ensure minimal disruption to systems

MUT Mini Series

Mini feed-through terminal block MUT 2.5 Data Sheet

Instruction Sheet - 3248030

Line Drawing - 3248030
