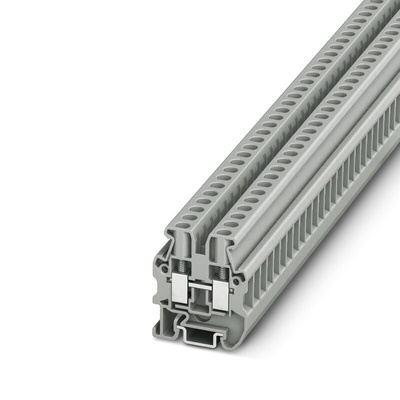

3248035, Phoenix Contact MUT 4 Series Grey Feed Through Terminal Block, 4mm², Single-Level, Screw Termination

Phoenix Contact Feed-Through Terminal Block, 41A Current Rating, Screw Terminal Connection - MUT 4 - 3248035

Need to connect wires in a circuit where space is tight? Grab this mini feed-through terminal block from Phoenix Contact. With compact dimensions of 34 (H) x 29.9 (L) x 6.2mm (W), this diminutive device fits easily into cramped setups. It's also DIN rail-mounted, so installation couldn't be easier – just snap it in place on a standard 15mm rail.
A hefty 41A current rating and 500V nominal voltage means this hardy piece of kit can handle heavy-duty applications with ease. It's a robust choice for industrial and civil electrical installations.
For hassle-free cable management, all the terminal points on the unit are clearly marked so you can identify them at a glance. The handy screw clamp method keeps conductors firmly fixed, even in high-vibration applications.

• Self-extinguishing in under 10 seconds to help prevent the spread of fire
• Standardised plug-in bridges mean easy distribution with other terminal blocks
• Hardwearing polyamide housing can handle knocks and scrapes in a tough industrial setting
• Compatible with wires between 24 and 10AWG so it's versatile

MUT Mini Series

Mini feed-through terminal block MUT 4 Data Sheet

Instruction Sheet - 3248035
