3248125, Phoenix Contact MPT 2.5 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Push In Termination

Phoenix Contact Feed-Through Terminal Block, 500V Voltage Rating, 30A Maximum Load Current - MPT 2,5 - 3248125

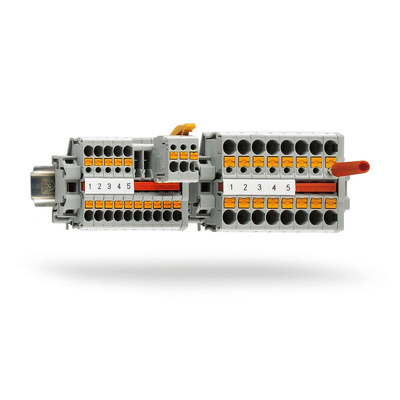

Achieve a steady link between conductors and your equipment with this feed-through terminal block from Phoenix Contact. Its fuss-free push-in connections let you wire it securely without reaching for your toolbox, saving time and effort. Compact dimensions of 36 (H) x 5.2 (W) x 32.8mm (D) ensure it takes up minimal space on your NS 15 DIN rail. This makes it the right pick for setups where space is tight.
The block's durable polyamide housing holds its ground against mechanical impact and abrasion, so you can count on it for lasting performance in industrial environments. An open side panel lets you attach it easily to other terminal blocks without dismantling your system. This unit is a handy option for use in the railway and marine industries as well as in plant engineering and machine-building applications.

Features & Benefits

• Maximum power dissipation of 0.77W means it emits little heat and uses minimal energy
• Voltage rating of 500V for use in high-voltage applications
• Accepts wire sizes ranging between 26 and 12AWG for flexible installation
• UL 94-V0 rating indicates that it stops burning in 10 seconds or less in the event of a fire
