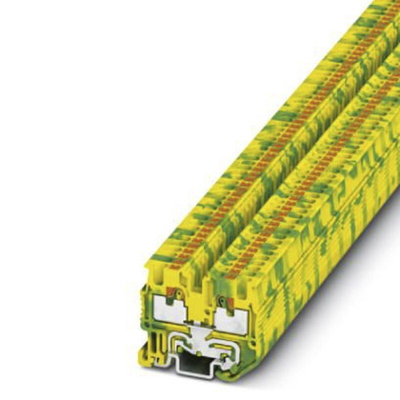

3248110, Phoenix Contact MPT 1.5/S-PE Series Green/Yellow Earth Terminal Block, 1.5mm², Single-Level, Push In Termination

MPT Series Mini Ground Terminal Blocks

Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Tested for railway applications
Easy potential distribution thanks to standardized plug-in bridges

Phoenix Contact Earth Terminal Block, DIN Rail Mounting, Push-in Connection - MPT 1.5/S-PE - 3248110

Keep your electrical installations well grounded with this earth terminal block from Phoenix Contact. It's a mini block, with a compact width of 3.5mm and mounts on a 15mm DIN rail, so it's a nifty solution for busy panels. As you can quickly slot your conductors into the connectors without the need for tools, installation's a breeze. An internal spring keeps wires secure, which means there's less risk of loose connections disrupting your work. Simply hold in the orange button with a standard slotted screwdriver for hassle-free removal.
Green and yellow housing makes this unit easy to spot as an earth terminal, even in complex setups. It's rated with a surge voltage of 6kV to handle high-power applications, such as railway machinery and heavy plant engineering circuits.

Features & Benefits

• Accepts solid and stranded conductors with cross-sections between 0.14 and 1.5mm² for connection flexibility
• Flame-retardant to UL 94 V-0 safety standards, meaning burning stops in 10 seconds if there's a fire
• Polyamide housing is thermally stable and durable so it's ideal for use in harsh industrial environments

MPT Series

Mini ground terminal block MPT 1,5/S-PE Data Sheet
