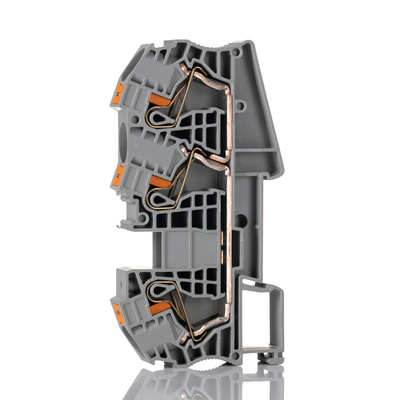

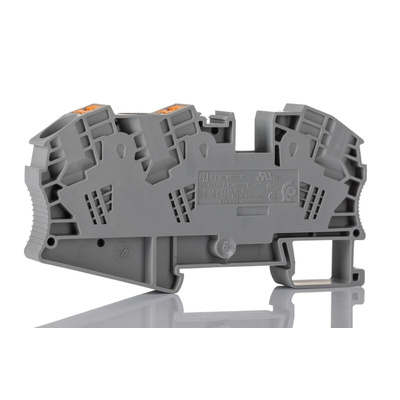

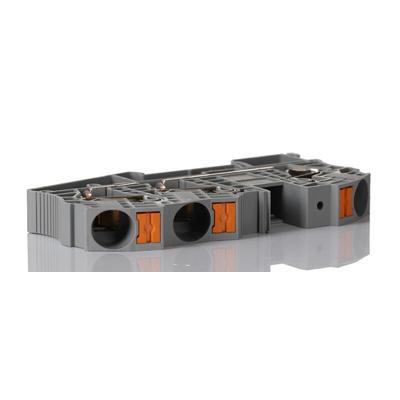

3208760, Phoenix Contact PT 16 Clipline Series Grey Feed Through Terminal Block, 0.5 → 25mm², Single-Level, Push In

Phoenix Contact Feed-Through Terminal Block, 3 Connections, 30g Shock Resistance - PT 16-TWIN N - 3208760

Link wires in your panel efficiently using this feed-through terminal block from Phoenix Contact. It's a single-level unit that lets you make three connections and keep your setup streamlined. Thanks to push-in termination, you can swiftly slot in your conductors without using any tools. The unit accommodates wires that range in size from 20 to 4AWG, so it's a versatile option. A current rating of 76A means it can handle the demands of your high-power equipment.
You'll typically find this terminal block used in railway controls and packaging facilities. Mount it by snapping it to your DIN rail. It has an open side panel so you can reach in to adjust the wires without taking it off the rail. As the PA housing offers insulation protection, you can safely handle it without risking an electric shock.

Features & Benefits

• Rated surge voltage of 8kV to stand up to current spikes
• ATEX-certified for safe use in places at risk of explosion
• Shock resistance of 30g at 18ms for durability in harsh conditions
• Flammability rating of UL 94-V0 indicates it minimises the risk of fire spreading

PT Series

Feed-through terminal block - PT 16-TWIN N Data Sheet

Line Drawing - 3208760

Instruction Sheet - 3208760
