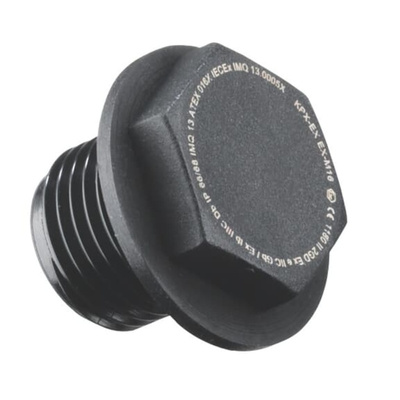

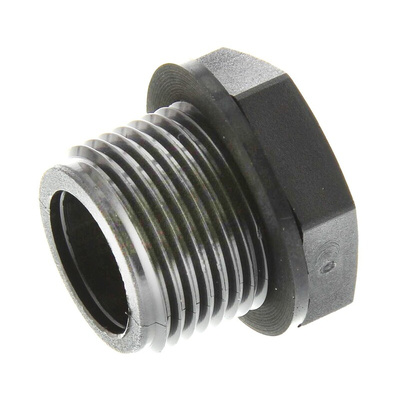

7TCA297140R0013 EX-M20, Kopex-EX Stopping Plug, M20, Nylon, 23mm Diameter, Threaded, Пробка-заглушка

Stopping Plugs with Sealing Ring

Exe Nylon Stopping Plugs are designed to close any unused entries in electrical equipment. The stopping plugs are manufactured from flame retarded Polyamide (Nylon 6) and are supplied in metric threads with a sealing ring to ensure that the IP rating of the installation is maintained.

IP66-IP68
Suitable for use in Zones 1, 2, 21, 22

Standards

IP66-IP68
Suitable for use in Zones 1, 2, 21, 22

Approvals

IMQ 13 ATEX 016X
IECEx IMQ 13.0005X
Exe IIC Gb
Ex tb III Db

Kopex-EX Stopping Plug, 23mm Diameter, M20 Thread - EX Series - EX-M20

Seal off empty cable entries in your electrical enclosure using this stopping plug from Kopex-EX. Its prevents dust and dirt particles from entering your circuits to ensure they perform without interruption. As this unit is designed to seal the end of a conduit system, it's suitable for use in building wiring installations. Its durable nylon body material is resistant to wear and corrosion and it's also flame-retardant, so can rely on it in demanding industrial environments.

Features & Benefits

• Wide operating temperature range of -40°C to +80°C for safe use in challenging settings
• Compact diameter of 23mm to fit into medium-sized entries
• Threaded design for straightforward installation and a secure fit, even in vibrating equipment
• Supplied in a pack of 10 to ensure you'll have plenty on hand

Applications

• Agricultural industry
• Control panels
• Commercial buildings
• Packaging industry

Can this plug stop water from entering my system?

Yes, it can. Its IP68 (ingress protection) rating means it's dustproof and protected against submersion in water deeper than 1m. This means it keeps water out of your circuits and boosts electrical safety.

Exe Nylon Stopping Plugs Data Sheet
