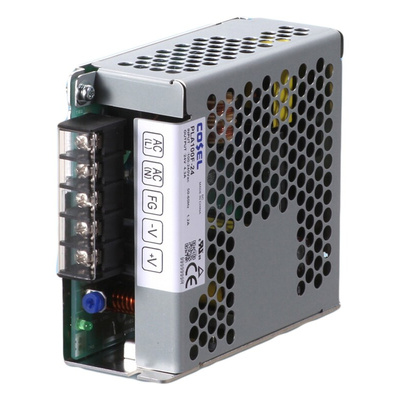

Cosel Switching Power Supply, PLA100F-24, 24V dc, 4.3A, 103W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

PLA100F Series Single Output Switch Mode Power Supply

PLA100F embedded switch mode power supplies (SMPS) from Cosel are a compact and economical solution. With a universal input of 85 V ac to 264 V ac, these switching power supplies also feature low power consumption.

Features and Benefits;

Wide temperature range (but derating is required)
25% smaller than the PBA Series
Compact design - depth of only 109 mm
Low power consumption (1.5 W typical, 240 V ac in, no load at standard model)
Highly efficient (88% typical for PLA100F-24, 230 V ac in, 100% load)
Harmonic attenuator
Different connection interface options are available
Cooled by convection

Note

Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Standards

UL60950-1, cUL (CSA60950-1), EN60950-1, EN50178, UL508 (Except option -J) Complies with DEN-AN
Conducted noise complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2 class A
UL508 Approved (except option -J)
Complies with SEMI F47

Approvals

UL, US, TUV, CE
