THD 10-2413WIN, TRACOPOWER THD 10WIN DC-DC Converter, 15V dc/ 666mA Output, 9 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp, Преобразователь

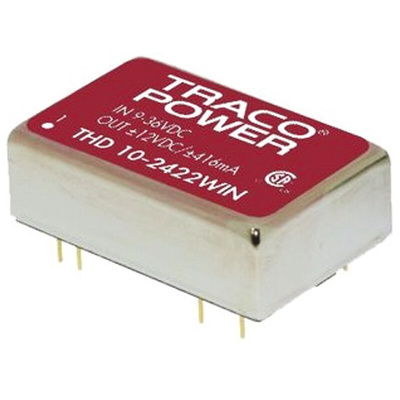

Traco 10W Regulated Isolated DC-DC Converter - THD10WIN Series

The Tracopower THD 10-WIN is a Series of 10W regulated, isolated, high performance DC-DC converters with a low profile package and wide input voltage range. These isolated high performance DC-DC converters have an internal EMI filter to EN55022 class A and a full SMD-design. The THD 10-WIN features a DIP-24 standard package, which makes these DC-DC converters a drop in replacement for many cost critical applications.

Ultra wide 4:1 input voltage range
Internal EMI-filter meets EN 55022, class A without external components
High efficiency up to 87%
Operating temperature range –40°C to +85°C
No minimum load required
I/O isolation 1,500 VDC
Overload protection

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
