1041, Time Electronic Resistance Decade Box, Resistance Resolution 0.01Ω, Absolute Maximum Resistance Measurement 1kΩ, Декадный магазин

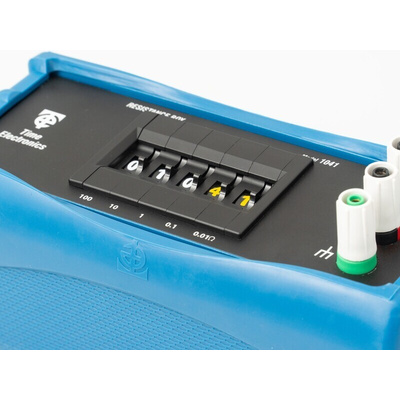

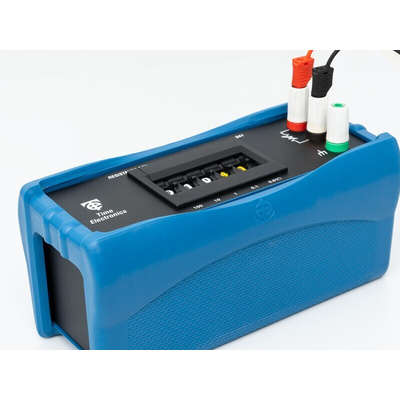

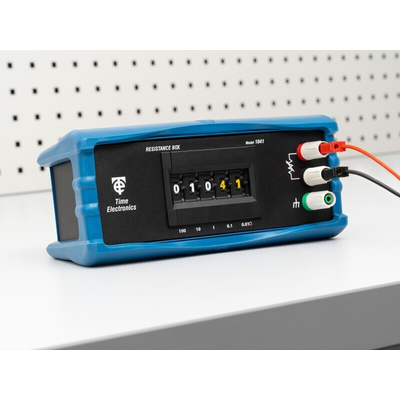

Time Electronics Model 1041 Low Ohm Decade Resistance Box

Time Electronics 1041 is a precision low ohm resistance box designed for general laboratory work, including platinum resistance thermometry. The 1041 is compact and durable. It is housed in a robust metal case with removable protective rubber cover which facilitates use not only in the laboratory but also in the field. Excellent accuracy is achieved through using high stability metal film resistors. The 5-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.

Range/resolution 0 - 1kΩ / 0.01 Ω steps
High accuracy
Clear visual indication, using colour-coded digits
High stability
Low temperature coefficient 50 ppm/°C
Safety terminals (compatible with 4mm shrouded plugs, standard plugs, bare wires, spade terminals)
Residual resistance <60 mΩ
Power Rating 1W per resistor
Voltage Rating: Maximum 100 V DC/AC RMS
Suitable for PRT/RTD
Removable protective cover
Dimensions 215(W) x 100(H) x 120(D) mm
Weight 1kg

Decade Boxes Data Sheet

1041 Resistance Decade Box Data Sheet

1041 Low Ohm Decade Resistance Box Technical Manual
