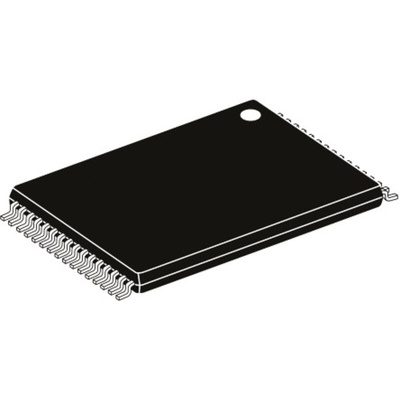

CLRC632 RFID Reader
The CLRC632 is a highly integrated reader device for contactless RFID communication.
RF Operating Frequency: 13.56MHz
OTA Data Rate: up to 424kbps
Proximity operating distance: up to 100mm
Supports MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight protocols
64-byte Tx/Rx FIFO buffer
Unique serial number
Host communication: SPI, parallel
Pin compatible with MFRC500, MFRC530, MFRC531 and SLRC400 devices
Power supply: +3.0 to +5.5Vdc
Operating temperature range: -25 to +85°C
Standards
ISO/IEC 14443 Type A/B, I-CODE1 and ISO/IEC 15693
