178857, Burkert Angle Pneumatic Valve, 1 in G, Клапан

8163070
Номер производителя: 178857Производитель: Burkert
Цена за шт.
76905.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

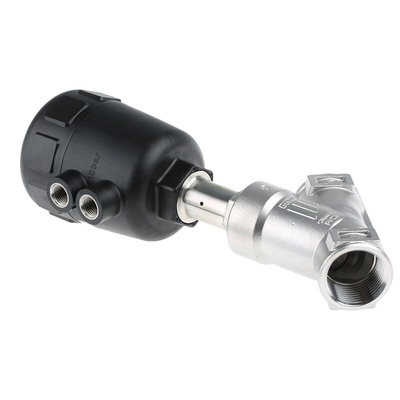

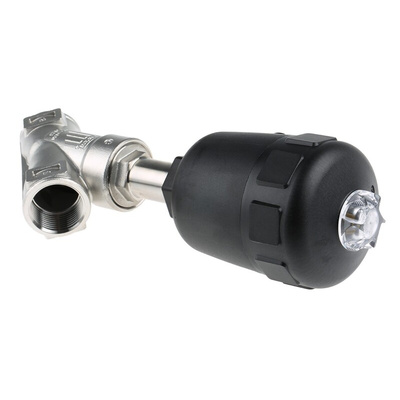

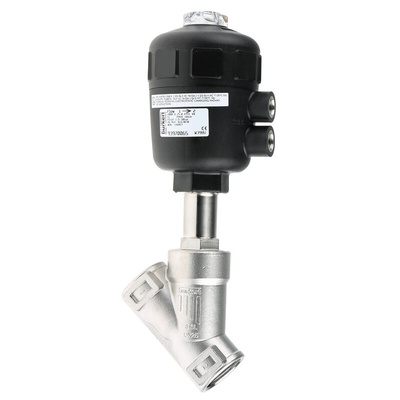

Burkert Pneumatic Valve

The Burkert pneumatic valve with angle seat 1in G connection has normally closed (NC) configuration and is made of cast stainless steel for maximum operating pressure of 16bar. It has a 2/2-way configuration with the under-seat flow for liquids. This anti-water hammer valve employs live loaded packing and an N-seal piston actuator, all in an application proven rugged compact envelope.

Features and Benefits

Ambient temperature ranging between –10°C and 60°C
Flow rate is 18m³/h
High flow rate because of compact design
Intermediate relief
Media temperature ranging between –10°C and 180°C
Orifice is 25mm
Polyamide actuator casing and PTFE seal material
Self-adjusting spindle packing glands
Wiper seal

Certifications

GL approved
SIL approved

Техническая спецификация
pdf2000 Threaded Port 2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 15-65 Data Sheet
Максимальное рабочее давление:
16 бар
По умолчанию положение клапана:
NC
Размер резьбы:
1in
Связь:
1 in G
Стандартная резьба:
G
Тип возвращаемыхВозвращаемый тип:
Spring
Тип клапана:
Угол
