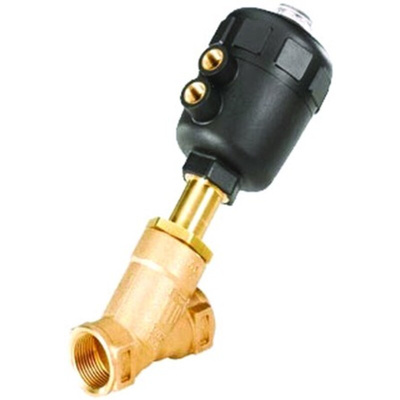

Burkert Pneumatic Valve
The Burkert pneumatic valve with angle seat 2in G connection has normally closed (NC) configuration and is made of gunmetal for maximum operating pressure of 10bar. It has a 2/2-way configuration with the under-seat flow for liquids. This anti-water hammer valve employs live loaded packing and an N-seal piston actuator, all in an application-proven rugged compact envelope.
Features and Benefits
Ambient temperature ranging between –10°C and 60°C
Flow rate is 55m³/h
High flow rates from compact designs
Intermediate relief
Media temperature ranging between –10°C and 180°C
Orifice is 50mm
Polyamide actuator casing and PTFE seal material
Self-adjusting spindle packing glands
Wiper seal
Certifications
GL approved
SIL approved
2000 Threaded Port 2/2-way Angle-Seat Valve for medium up to +180°C, threaded port connection, DN 15-65 Data Sheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
