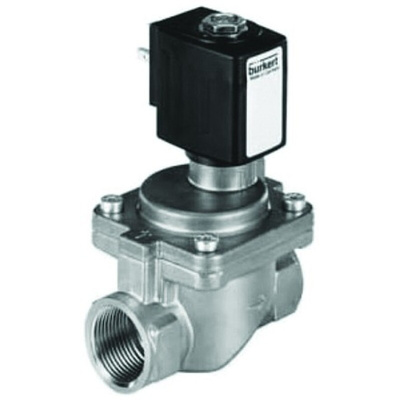

221994, Burkert Solenoid Valve 93970147, 2 port , NC, 230 V ac, 3/4in, Клапан

8163279
Номер производителя: 221994Производитель: Burkert
Цена за шт.
70284.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DS6281-EV 2/2 Solenoid Valve - Stainless Steel

A 2 way servo assisted solenoid valves suitable for use with neutral fluids such as compressed air and water. N/C (Normally Closed) and N/O (Normally Open) versions available with NBR (Nitrile Rubber) or FKM (Fluroelastomer) seals. Usable for a variety of applications including heating and refrigeration, water treatment, compressed air and vacuum systems
ATEX approved versions available.

0.1 - 4 second response time (dependant upon pressure)
IP65 Rated (with cable protection)
Stainless steel body
Quiet operation
Water hammer free design
Compact installation length
NPT / Rc connection ports
0.2 - 16 Bar pressure range

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Техническая спецификация
pdf6281EV Standard 2/2-way Solenoid Valve with servo diaphragm, G 3/8-G 2 Data Sheet
Servo Assist:
Да
Диапазон рабочих температур:
0 → +120 °C
Количество портов:
2
Корпус - материал:
Нержавеющая сталь
Коэффициент расхода Kv:
8.5м³/ч
Максимальное время закрытия:
0.1 → 4s
Максимальное рабочее давление:
16 бар
Напряжение питания:
230 В перем. тока
Операция:
Pilot
Отверстие с диаметром:
20мм
По умолчанию положение клапана:
NC
Подключение тип:
Female
Подходят применения:
Hot Air, Pre-Solution
Рабочая температура - максимальная:
+120°C
Рабочая температура - минимальная:
0°C
Размер соединения:
3/4in
Связь:
3/4 in G
Серия:
6281 EV Standard
Стандарт резьбы или тип соединения:
G
Тип:
2/2
