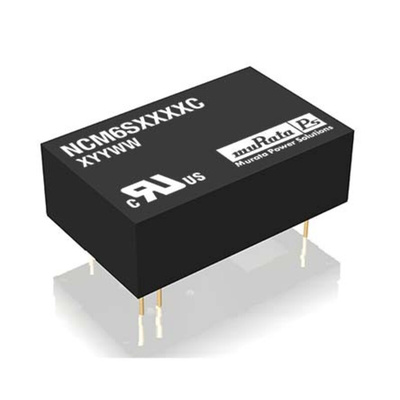

NCM6S0512EC, Murata Power Solutions NCM6 DC-DC Converter, 12V dc/ 500mA Output, 4.5 → 9 V dc Input, 6W, Through Hole, +85°C, Преобразователь

Murata 6W Single and Dual Output Isolated DC-DC Converter - NCM6 Series

The Murata NCM6 series of DC/DC converters offers single & dual output voltages from input voltage ranges of 4.5-9V and 9-36V and 18-75V. This isolated power converter is housed in an industry standard package with a standard pin-out. The DC/DC converter is encapsulated for superior thermal performance. Applications of the NCM6 isolated DC-DC converter include medical, telecommunication battery powered systems, process control and distributed power systems.

4:1 Wide range voltage input
Operating temperature range -40°C to 85°C
5200VDC Isolation
Typical efficiency to 88%
5V, 12V & 48V Nominal input
Power density 0.94W/cm³
5mm creepage guaranteed
Under voltage lock out
Control pin option

Approvals

UL60950, UL60601 (3rd Ed), 2 MOOP

Murata Power Solutions - DIP

Datasheet 2018 update
