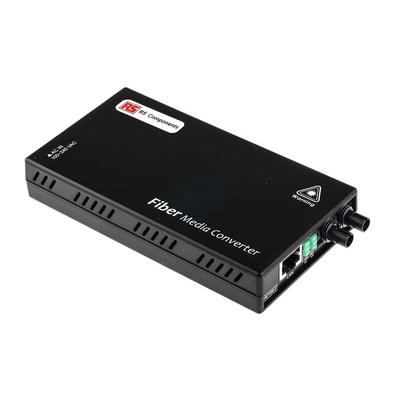

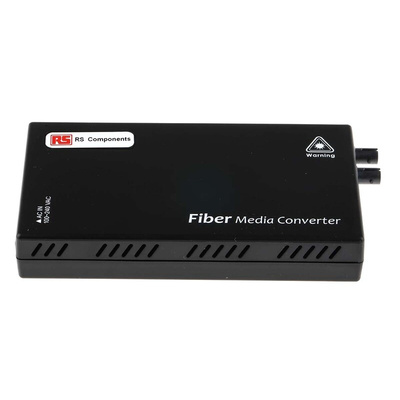

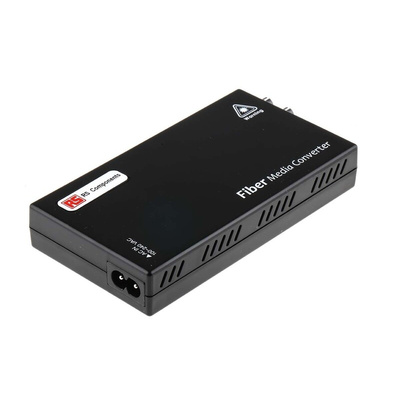

RS PRO Ethernet Media Converter

This RS PRO ethernet media converter makes it easy to create a reliable, seamless connection between two different cable types. Use it to set up, expand or update your Local Area Network (LAN) by connecting devices without the hassle of joining different types of cable. It operates at a maximum supply voltage of 240 V AC, and a minimum supply voltage of 100 V AC.

You can install this compact converter easily and it's discreet enough for surface-mounting. Though small, it's big on features that help make installation simple, such as Auto-Negotiation function that automatically chooses the optimal speed and data flow. Plus, you can use either crossover or straight-through cables thanks to the Auto MDI/MDIX functionality.

This ethernet media converter meets the internationally recognised standards for ethernet functionality, IEEE 802.3 and IEEE 802.3u. It also contains minimal hazardous substances as it's RoHS (Restriction of Hazardous Substances) compliant.

Features and Benefits

• Ethernet media converter
• Surface mounting
• Fibre media connector
• 10/100Base-TX to 100Base-FX Converter
• Auto-Negotiation or forced mode
• Auto MDI/MDIX
• Forward 2046 bytes (max.) packets in switch mode
• Forward 9K jumbo packets in converter mode
• One x 9 (ST) connector
• Data rate of 125 Mbps
• Full duplex
• Fibre of 62.2/125 μm
• Distance of 2 Km
• Wavelength of 1310 nm
• Supports Q in Q double tagged frame transparent
• Supports IEEE 802.1q Tag VLAN pass-through
• Supports local/remote in-band management (Monitor and Configure) by the SNMP manager with FRM220-10/100i specifications
• Bandwidth control (N x 32 Kbps or N x 512 Kbps)
• Supports flow control (Pause)
• Supports remote CPE power fail detect (dying gasp)
• Supports Far End Fault Indication (FEFI)
• Supports Link Fault Pass-Through (LFPT )
• Supports Loop Back Test
• Supports RMON counter
• Auto Laser Shutdown (ALS)
• Fibre Hardware Reset (FHR) local/remote
• LEDs for power, FX Link, TX SPD, TX Link, TX Duplex and FEF
• Minimum supply voltage of 100 V AC
• Maximum supply voltage of 240 V AC
• Minimum operating temperature of 0°C
• Maximum operating temperature of +50°C
• Dimensions of 135 x 73.4 x 23 mm
• RoHS compliant for minimal hazardous substances
