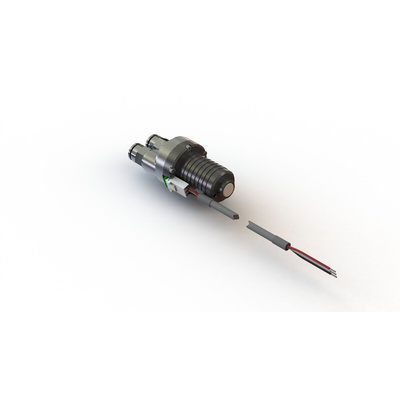

RS PRO 6 → 28V 8bar Direct drive, Seal-less Coupling Micro External Gear Pump Water Pump, 550ml/min

RS PRO Direct Coupling Water Pump, 6 V to 28 V, 25 Bar, 550 ml/min

This micro pump from RS PRO delivers a smooth flow of liquid at both high and low pressures. It's compatible with most fluids and is used in machinery, such as lubrication and cooling systems.
The CNC (computer numerical control) machined pump is manufactured to precise dimensions to ensure it's high quality and able to deliver reliable performance. Its body is made of aluminium, which is lightweight for improved efficiency. This metal has good corrosion resistance to ensure the unit won't rust easily. The pump is self-priming, so you're assured of a reliable start-up each time you use it.
A part like this is suitable to use as a high-pressure fuel pump. Its IP45 (Ingress Protection) rating means it's protected against solid objects like sand and will work for at least 30 minutes underwater.

Features and Benefits

• Body material made of aluminium
• Tubing connector made of stainless steel
• Seals made of Viton™
• Gear made of PEEK (polyether ether ketone)
• Volute made of polyacetal
• Direct coupling type
• Input connection size of 6 mm
• Input power of 6-28W (0-8 BAR @ 12V)
• Maximum flow rate of 550 ml/min
• Maximum fluid temperature of +80°C
• Maximum working pressure of 8 bar
• Output connection size of 6 mm
• Push-fit pneumatic connector
• Supply voltage of 6 V to 28 V
