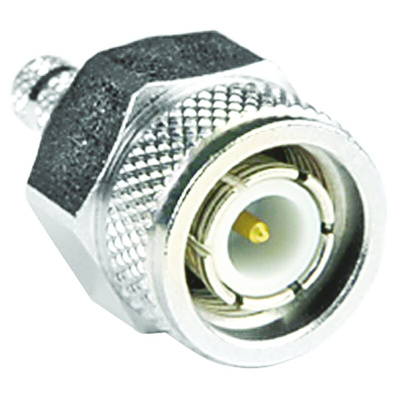

031-6499, Amphenol RF, Plug Cable Mount TNC Connector, 50Ω, Crimp, Solder Termination, Straight Body, Разъем

Amphenol 50 Ohm TNC RF Rugged Connectors

50 Ohm TNC RF coaxial rugged IP67 connectors for use in harsh conditions. These TNC RF coaxial rugged plugs and jacks have a single piece body design allowing improved performance in harsh shock and vibration conditions. An internal gasket and external sealed ring with adhesive heatshrink prevent ingress from both ends of the these rugged TNC connectors making them fully submersible and impenetrable to fluids according to IP67 in both mated and unmated conditions. Typical applications for these IP67 rugged TNC RF coaxial plugs and jacks include transportation, military, mining and construction, industrial control and other outdoor applications where a sealed connector is needed.
For use with RF coaxial cable type LMR-200, available with different orientations, mounting styles and reverse polarity option.

The Amphenol RF cable mount, straight, plug TNC connector has 50Ω impedance with nickel body and gold contact plating. It utilize the familiar threaded interface which ensures mating stability and reliable electrical performance.

Waterproof IP67 rated
Tamper resistant
Threaded coupling mechanism
Durable construction
Available in a variety of configurations

Amphenol TNC Connectors

TNC Rugged IP67 RF Coaxial Plug
