BK1671A, BK Precision 1671A Series Digital Bench Power Supply, 30V, 5A, 3-Output, 158W, Блок питания

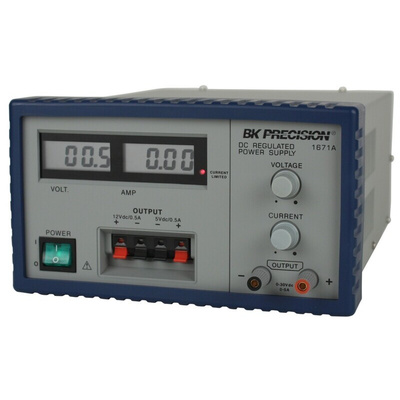

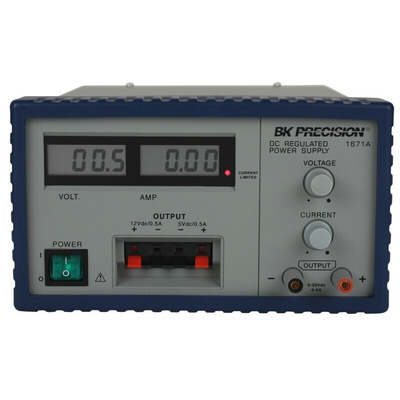

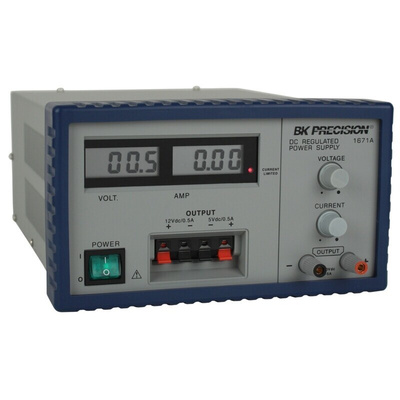

B&K Precision Model 1671A Triple Output DC Bench Power Supply

B&K Precision Model 1671A is a general purpose triple output DC bench power supply. The main outputs are versatile constant voltage or constant current regulated power source that is variable from 0 - 30 V and 0 - 5 A. An indicator lights in the constant current mode and serves as an overload indicator in the constant voltage mode. The 1671A is competitively priced against most single output power supplies but offers the advantages of fixed 5V and 12V outputs capable of providing up to 0.5A each.
A common application of the 1671A is the powering of circuit boards while troubleshooting. Many circuit boards require two or three input voltages, with the most common values being 5V and 12V. The 1671A can provide up to three outputs simultaneously and, because each output is fully isolated, any output can be connected for positive or negative polarity.
The main output voltage and current are continuously monitored by two digital LCD meters with resolution of 0.1V and 0.01A. The 1671A can operate continuously at its maximum rated output and is fully overload-protected. This bench power supply is popular for general electronic servicing, school electronics laboratories and powering up projects in general.
Our B&K Precision bench power supplies include the 1550 ( 817-2194 ), 1687B ( 817-2229 ), 9120A ( 817-2213 ) & 9130 ( 817-2217 ). Users of our B&K Precision bench power supplies may also be interested in our B&K Precision electronic loads: 8500 ( 817-2204 ), 8502 ( 817-2207 ), 8510 ( 817-2201 ), 8512 ( 817-2223 ) & 8540 ( 817-2210 ).

One variable 0 - 30 Vdc, 0 - 5 A section
One 12Vdc fixed section
One 5Vdc fixed section
Dimensions 124 x 216 x 292 mm
Weight 6.5kg

Supplied with

instruction manual, spare fuse

BK Precision Triple Output DC Power Supply

The BK Precision 158W triple output DC power supply has 1 output that delivers an output voltage rating of 0V to 30V and a current rating of 0A to 5A. Additionally, it has 2 fixed outputs that deliver an output voltage of 12V and 5V, respectively and a current rating of 500mA. It can provide up to three outputs simultaneously and, because each output is fully isolated, any output can be connected for positive or negative polarity. Because, many circuit boards require two or three input voltages, with the most common values being 5V and 12V. It has a 3-digit two LCD panel. A common application of the this is supplying power of circuit boards while troubleshooting.
Inclusions:
Instruction manual, spare fuse.

Features and Benefits

Constant voltage (CV) operation modes
Constant current (CC) operation modes
Short circuit protection
Reverse polarity protection
Current limiting protection
Overvoltage protection
Height of 124, width of 216 and depth of 292mm
Weight is 6.5kg

Applications

Industrial
Medical equipment
Electronic equipment
Schools

Certifications

cULus approved
